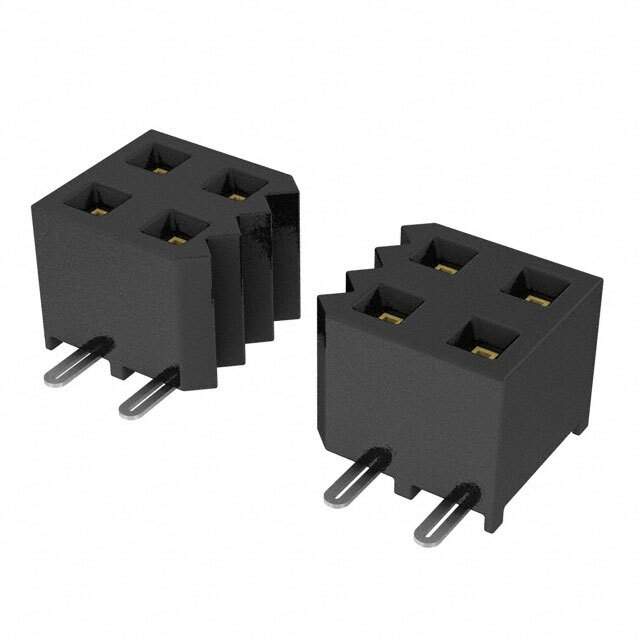

SMM-137-02-S-D Real Image
Same model may have multiple batches, images only for reference.

SMM-137-02-S-D

Part No SMM-137-02-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SMM-137-02-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SMM
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 74
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.140" (3.56mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.2A per Contact
Voltage Rating 350VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SMM-137
Other Names SAM1243-37
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285412-SMM-137-02-S-D
Ultra Librarian 3D Model Ultra Librarian SMM-137-02-S-D CAD Model

Description

The Samtec Inc. SMM-137-02-S-D is a high-quality rectangular connector that is designed for board-to-board or cable applications.

  • Positions: 74
  • Contact Material: Beryllium Copper
  • Voltage Rating: 350VAC
