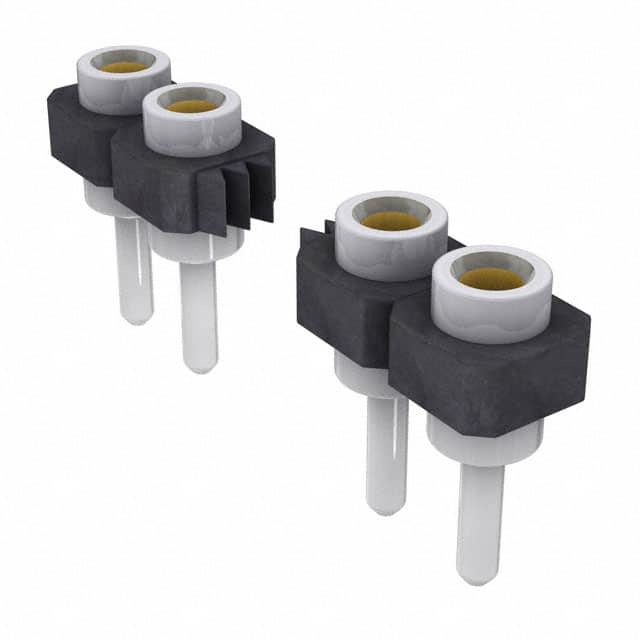

SL-105-T-10 Samtec Inc.
Same model may have multiple batches, images only for reference.

SL-105-T-10

Part No SL-105-T-10
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 5POS 0.1 GOLD PCB / 5 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
SL-105-T-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SL
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 5
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.122" (3.10mm)
Contact Length - Post 0.108" (2.75mm)
Temperature Range - Operating -55°C ~ 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SL-105
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1105-05
Standard Package 1
Win Source Part Number 1093670-SL-105-T-10
Ultra Librarian 3D Model Ultra Librarian SL-105-T-10 CAD Model

Description

The SL series from Samtec Inc. is a great choice for your rectangular connector needs.

  • Product Name: SL-105-T-10
  • Manufacturer: Samtec Inc.
  • Connector Type: Receptacle
  • Positions Loaded: 5
  • Fastening Type: Push-Pull
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Shape: Circular
  • Contact Length: 0.108" (2.75mm)
  • Contact Finish: Gold Plated
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Operating Temperature Range: -55°C ~ 125°C
