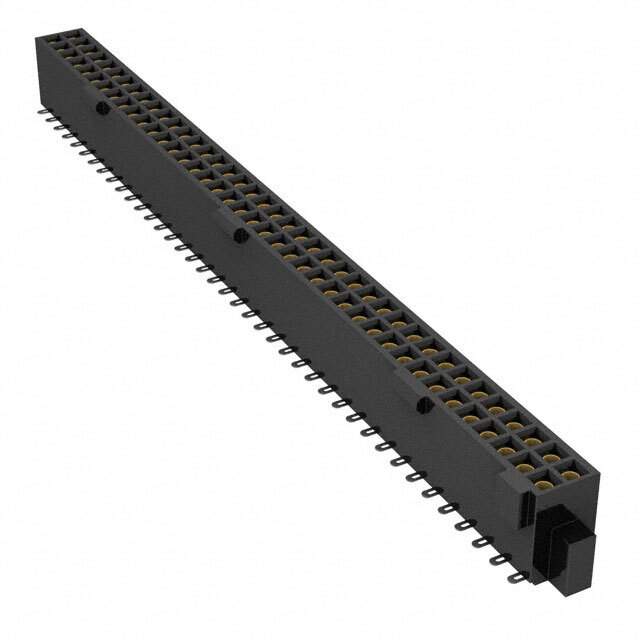

SFML-140-02-S-D Real Image
Same model may have multiple batches, images only for reference.

SFML-140-02-S-D

Part No SFML-140-02-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFML-140-02-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFML
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 80
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Base Product Number SFML-140
Other Names SAM8725,SFML14002SD
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285447-SFML-140-02-S-D
Ultra Librarian 3D Model Ultra Librarian SFML-140-02-S-D CAD Model

Description

The Tiger Eye™ SFML female receptacle connector is a rectangular connector designed for board-to-board or cable applications.

  • Positions: 80
  • Pitch: 1.27mm
  • Contact Finish: Gold with a thickness of 0.76μin
  • Packaging: Tube
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
  • Manufacturer: Samtec Inc.
