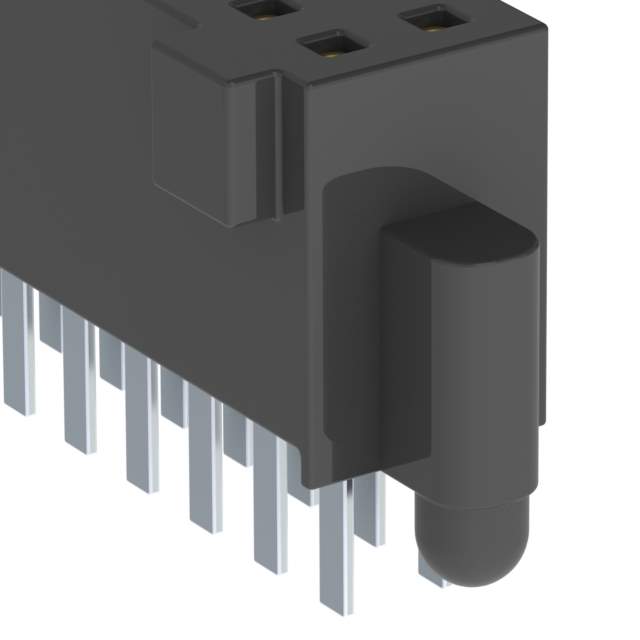

The Samtec Inc. SFM-130-L3-S-D-A is a Tiger Eye™ SFM series connector that features 60 positions, board guide, receptacle connector type, female socket contact type, all positions loaded, two rows, solder termination, push-pull fastening type, tube package, beryllium copper contact material, and liquid crystal polymer insulation material.

• Positions: 60
• Feature: Board Guide
• Connector Type: Receptacle
• Contact Type: Female Socket
• Loading: All positions
• Rows: Two
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tube
• Contact Material: Beryllium Copper
• Insulation Material: Liquid Crystal Polymer
• Voltage Rating: 250VAC
• Mated Stacking Heights: 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
• Contact Finish-Mating: Gold
• Contact Finish Thickness-Mating: 30.0μin (0.76μm)
• Contact Finish-Post: Tin
• Insulation Color: Black
• Style: Board to Board or Cable
• Pitch-Mating: 0.050" (1.27mm)
