Name: SFM-107-01-L-D
Brand: Samtec Inc.
SKU: 1286795
Availability: InStock

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	14
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-107
Other Names	SAM9121,SFM-107-01-L-D
Standard Package	45
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1286795-SFM-107-01-L-D
Ultra Librarian 3D Model	Ultra Librarian SFM-107-01-L-D CAD Model

Description

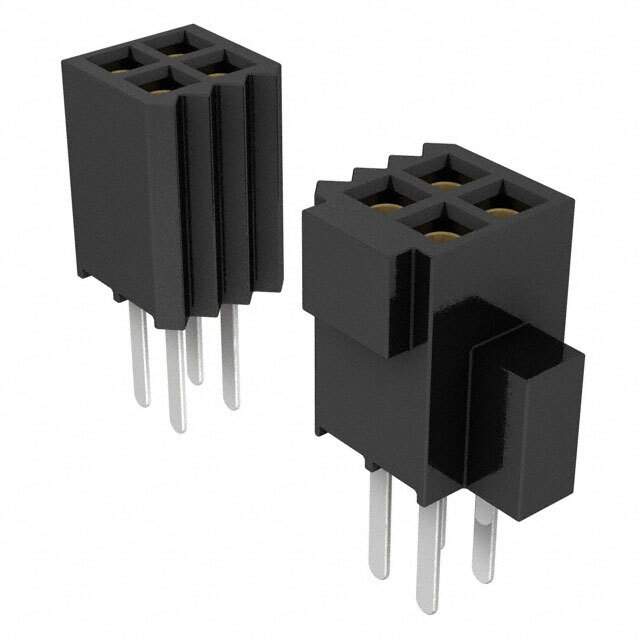

The Samtec Inc. Tiger Eye SFM is a rectangular connector that comes in a receptacle configuration with 14 positions.

Connector Type: Receptacle
Number of Positions: 14
Contact Type: Female Socket
Termination: Soldered
Voltage Rating: 250VAC
Current Rating: 3.2A per contact
Pitch Mating: 0.050 inches
Contact Finish Mating: Gold
Contact Finish Thickness Mating: 10.0μin
Contact Finish Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Operating Temperature: -55 degrees Celsius to 125 degrees Celsius
Insulation Height: 0.180 inches
