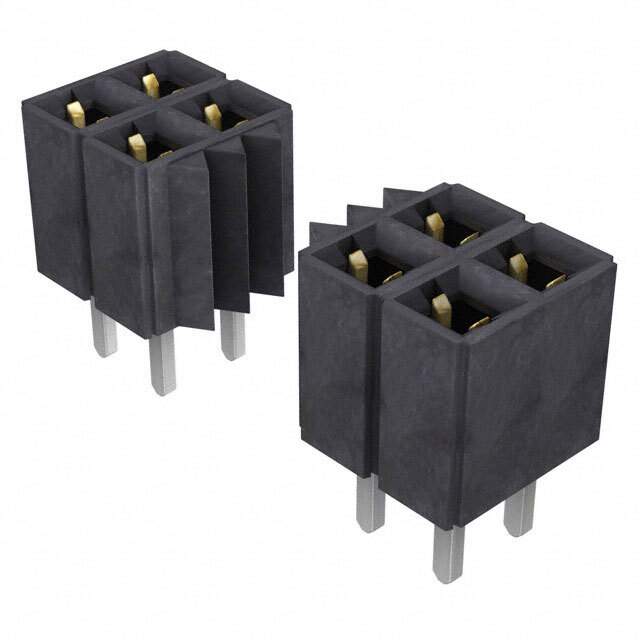

The Samtec Inc. SLW-132-01-S-D is a rectangular connector component that belongs to the headers, receptacles, female sockets category.

• Series: SLW
• Positions: 64
• Connector Type: Receptacle
• Contact Type: Forked
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Bulk
• Contact Material: Phosphor Bronze
• Voltage Rating: Not Specified
• Mated Stacking Heights: 6.09mm
• Ingress Protection: Not Specified
• Material Flammability Rating: Not Specified
• Standard Package: 1
• Insulation Material: Polyester, Glass Filled
• Style: Board to Board
• Pitch - Mating: 0.100" (2.54mm)
• Contact Finish - Mating: Gold (30.0 micro inches)
• Contact Finish - Post: Tin
• Insulation Color: Black
• Mounting Type: Through Hole
• Row Spacing - Mating: 0.100" (2.54mm)
• Contact Length - Post: 0.115" (2.92mm)
• Insulation Height: 0.180" (4.57mm)
• Contact Shape: Square
• Temperature Range - Operating: -55 degrees Celsius to 125 degrees Celsius
• ECCN: EAR99
• Current Rating (Amps): Not Specified
• HTSUS: 8536.69.4040
