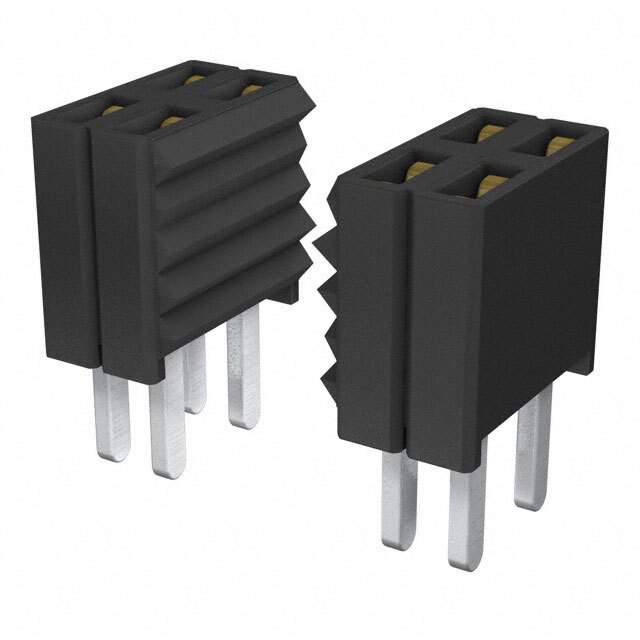

Same model may have multiple batches, images only for reference.

SLM-110-01-L-D

Name: SLM-110-01-L-D
Brand: Samtec Inc.
SKU: 1292681
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SLM-110-01-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SLM-110-01-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SLM
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Rectangular
Contact Material	Phosphor Bronze
Base Product Number	SLM-110
Standard Package	45
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292681-SLM-110-01-L-D
Ultra Librarian 3D Model	Ultra Librarian SLM-110-01-L-D CAD Model

Description

The SLM series receptacle connector is a rectangular connector that features a push-pull fastening type and is designed for board to board connections.

Contact Shape: Rectangular
Contact Material: Phosphor bronze
Temperature Range: -55°C to 125°C
Positions: 20
Positions Loaded: All
Rows: 2
Pitch: 0.050” (1.27mm)
Termination: Solder
Contact Finish Mating: Gold
Contact Finish Thickness Mating: 10.0µin (0.25µm)
Contact Finish Post: Tin
Insulation Material: Liquid crystal polymer (LCP)
Insulation Height: 0.180” (4.57mm)
Insulation Color: Black
