Same model may have multiple batches, images only for reference.

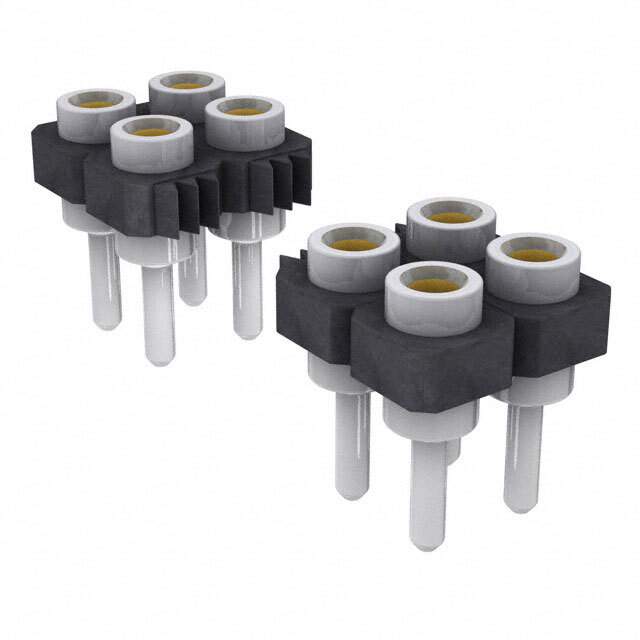

SDL-130-T-10 Real Image
Same model may have multiple batches, images only for reference.

SDL-130-T-10

Part No SDL-130-T-10
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-130-T-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 60
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.122" (3.10mm)
Contact Length - Post 0.108" (2.75mm)
Temperature Range - Operating -55°C ~ 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-130
Other Names SAM1136-30
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292971-SDL-130-T-10
Ultra Librarian 3D Model Ultra Librarian SDL-130-T-10 CAD Model

Description

The SDL-130-T-10 connector from Samtec Inc. is a rectangular connector with a receptacle type connector that has female socket contacts.

  • Positions: 60
  • Rows: Two
  • Pitch: 0.100 inches
  • Insulation Material: Liquid crystal polymer (LCP)
  • Flammability Rating: Not applicable
  • Contact Material: Beryllium copper
  • Contact Finish: Gold for mating contacts
  • Voltage Rating: Not specified
  • Temperature Range: -55°C to 125°C
  • Mounting: Through-hole
  • Fastening Type: Push-pull
  • Applications: Board-to-board applications
