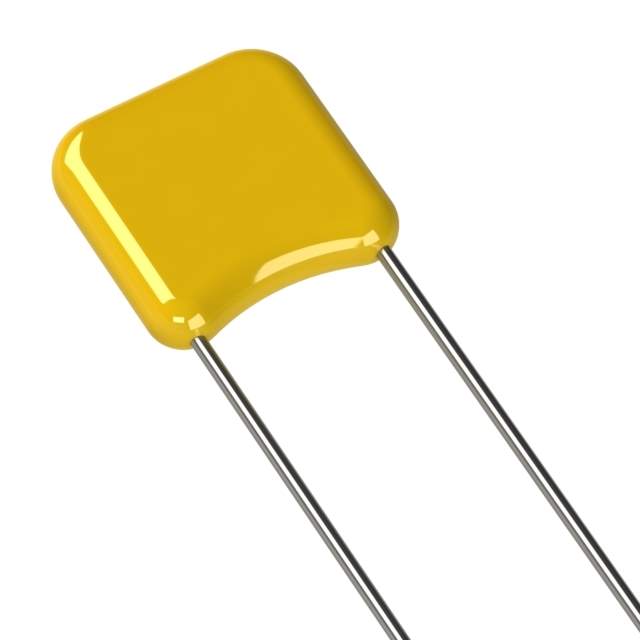

The SR201A222JAT is a multilayer ceramic capacitor (MLCC) manufactured by AVX Corp/Kyocera Corp. It is designed for general-purpose applications requiring a stable and reliable capacitance. MLCCs like this are frequently used in electronic circuits for bypassing, decoupling, filtering, and timing.

Applications

• Bypass and decoupling in digital and analog circuits
• Filtering in power supplies and signal lines
• Timing circuits
• General-purpose use in electronic devices like consumer electronics, industrial equipment, and automotive systems

Features

• Capacitance value of 2.2nF
• Voltage rating of 100V
• C0G (NP0) dielectric material offering high stability and low loss
• Surface mount technology (SMT) package
• Small physical size
• RoHS compliant

Benefits

• Provides stable and accurate capacitance over a wide temperature range
• Reduces noise and improves signal integrity
• Suitable for high-frequency applications due to low loss characteristics
• Enables compact circuit designs
• Complies with environmental regulations

Technical Specifications

The SR201A222JAT capacitor has a capacitance of 2.2nF (2200pF) with a tolerance of ±5%. Its voltage rating is 100V. The C0G (NP0) dielectric ensures minimal change in capacitance over temperature and voltage. It's designed for surface mount applications, facilitating automated assembly processes. The 'SR201' likely refers to the case size. It is often used in applications requiring very stable capacitance such as RF circuits and precision timing circuits. The 'JAT' refers to the tolerance and packaging.
