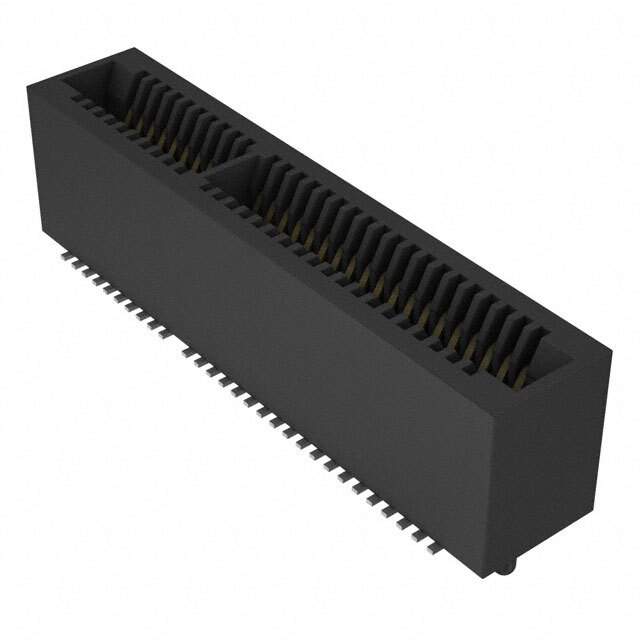

MEC1-130-02-F-D-A Real Image
Same model may have multiple batches, images only for reference.

MEC1-130-02-F-D-A

Part No MEC1-130-02-F-D-A
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 60POS 0.039 / 60 Position Female Connector Non Specified - Dual Edge Gold 0.039" (1.00mm) Black
Datasheet
MEC1-130-02-F-D-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Samtec Inc.
Packaging Tube
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 60
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide
Mounting Surface Mount
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Contact Type Loop Bellows
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number MEC1-130
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number MEC1-130-02-F-D-A-ND,SAM11481
Standard Package 16
Win Source Part Number 1334136-MEC1-130-02-F-D-A
Ultra Librarian 3D Model Ultra Librarian MEC1-130-02-F-D-A CAD Model

Description

The Samtec Inc. MEC1-130-02-F-D-A is a female card edge connector with 60 positions and a pitch of 0.039 inches.

  • Features: Board Guide
  • Contact Type: Loop Bellows
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer
  • Readout: Dual
  • Operating Temperature: -55°C to 125°C
  • RoHS3 Compliant: Yes
  • Standard Package: 16
  • Mounting: Surface Mount
  • Card Type: Non-Specified Dual-Edge
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.00µin (0.076µm)
