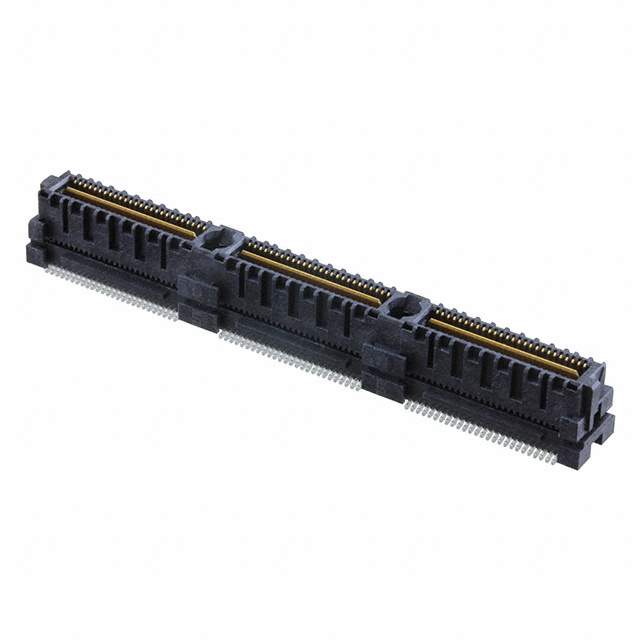

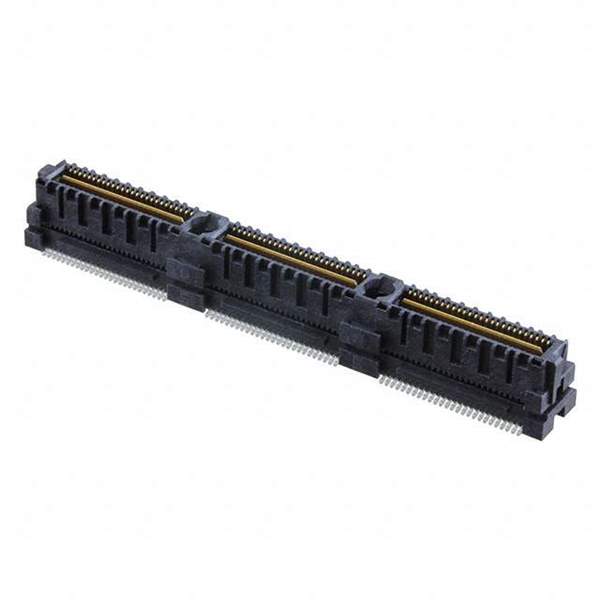

ASP-129637-03

Name: ASP-129637-03
Brand: Samtec Inc.
SKU: 1340653
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ASP-129637-03
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 156POS SMD GOLD / 156 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	ASP-129637-03 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	ASP
Package	Tray
Connector Type	Header, Outer Shroud Contacts
Number of Positions	156
Pitch	0.025" (0.64mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Ground Bus (Plane)
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Height Above Board	0.342" (8.68mm)
Base Product Number	129637-03
Standard Package	26
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1340653-ASP-129637-03
Ultra Librarian 3D Model	Ultra Librarian ASP-129637-03 CAD Model

Description

The Samtec Inc. ASP series edge type mezzanine connector is a high-density connector with 156 positions. Samtec Inc.

Series: ASP
Number of Positions: 156
Pitch: 0.025" (0.64mm)
Type: Outer Shroud Contact Header
Height Above Board: 0.342" (8.68mm)
Mounting Type: Surface Mount
Features: Ground Bus (Plane), Board Guide
Contact Finish: Gold - 30.0μin (0.76μm)
Package: Tray
RoHS Compliant: Yes
