Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr Samtec Inc.
Series Mini Mate® IPD1
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color White
Features Polarizing Key
Note Contacts Not Included
Base Product Number IPD1-03
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Names SAM9573
Standard Package 1
Win Source Part Number 1217260-IPD1-03-S-K
Ultra Librarian 3D Model Ultra Librarian IPD1-03-S-K CAD Model

Description

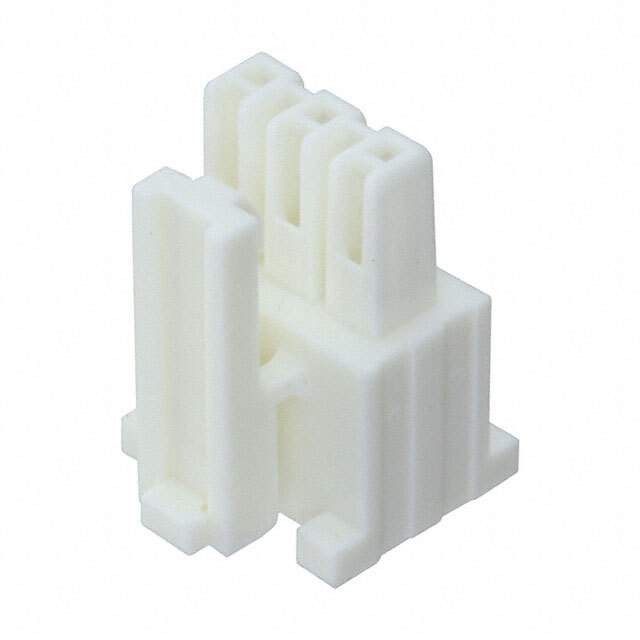

The Mini Mate® IPD1 series receptacle connector is a rectangular connector with 3 positions and a pitch of 0.100" (2.54mm).

  • Positions: 3
  • Pitch: 0.100" (2.54mm)
  • Color: White
  • Polarizing Key: Yes
  • Mounting: Free Hanging (In-Line)
  • Termination: Crimp
  • Contacts Included: No
