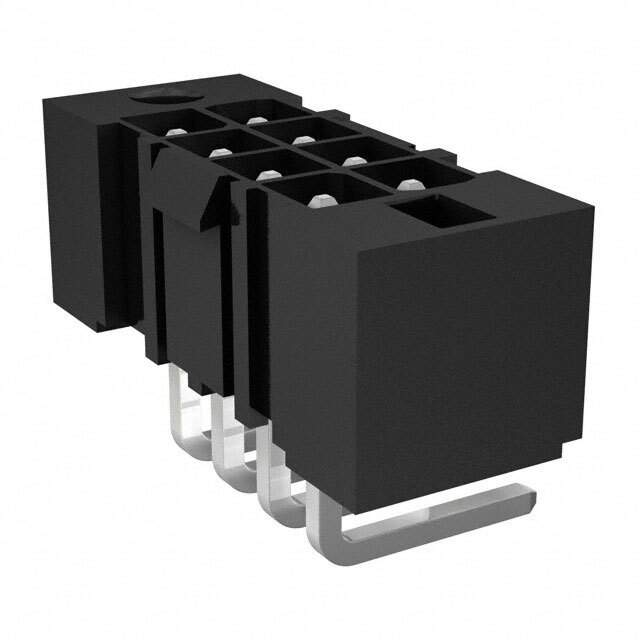

IPBT-104-H1-T-D-RA-GP

Name: IPBT-104-H1-T-D-RA-GP
Brand: Samtec Inc.
SKU: 1065232
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IPBT-104-H1-T-D-RA-GP
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 8POS 4.2MM / Connector Header Through Hole, Right Angle 8 position 0.165" (4.20mm)
Datasheet	IPBT-104-H1-T-D-RA-GP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Power Mate® IPBT
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.260" (6.60mm)
Contact Length - Post	0.147" (3.73mm)
Insulation Height	0.424" (10.77mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Mating Flange
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	400VAC, 565VDC
Base Product Number	IPBT-104
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM8817,IPBT-104-H1-T-D-RA-GP-ND,Q8253411
Standard Package	1
Win Source Part Number	1065232-IPBT-104-H1-T-D-RA-GP
Ultra Librarian 3D Model	Ultra Librarian IPBT-104-H1-T-D-RA-GP CAD Model

Alternative Products

Description

The Samtec Inc. 971243 is an 8-position Power Mate® IPBT header connector with male pins.

Positions: 8
Series: Power Mate® IPBT
Pin Gender: Male
Features: Mating Flanges
Connection Style: Board-to-Board or Cable
Material: Copper Alloy
Voltage Rating: 400VAC, 565VDC
Loaded Positions: All Positions
Row Spacing: 0.165" (4.20mm)
Mounting: Through-Hole
Shroud: Right Angle, 4 Walls
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Temperature Range: -55°C ~ 105°C
Cross-Referenced: Yes (Alternative Parts)
REACH: Unaffected
