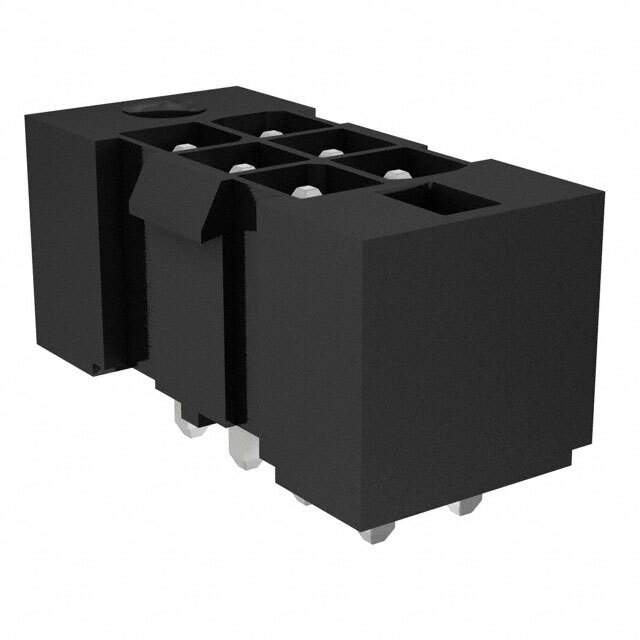

IPBT-103-H1-T-D-GP

Name: IPBT-103-H1-T-D-GP
Brand: Samtec Inc.
SKU: 814006
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IPBT-103-H1-T-D-GP
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 4.2MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.260" (6.60mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.510" (12.95mm)
Insulation Height	0.380" (9.65mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Mating Flange
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	400VAC, 565VDC
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	814009-IPBT-103-H1-T-D-GP
Ultra Librarian 3D Model	Ultra Librarian IPBT-103-H1-T-D-GP CAD Model

Description

The Samtec Inc. 814009-IPBT-103-H1-T-D-GP is a 6-position header connector with a through-hole mounting style.

Mounting Style: Through Hole
Mating Flange: Yes
Contact Type: Male Pin
Fastening Type: Locking Ramp
Contact Material: Copper Alloy
Voltage Rating: 400VAC, 565VDC
Material Flammability Rating: UL94 V-0
Insulation Material: Liquid Crystal Polymer (LCP)
Connector Style: Board to Board or Cable
Pitch-Mating: 0.165" (4.20mm)
Shrouding: Shrouded - 4 Wall
Temperature Range: -55°C to 105°C
