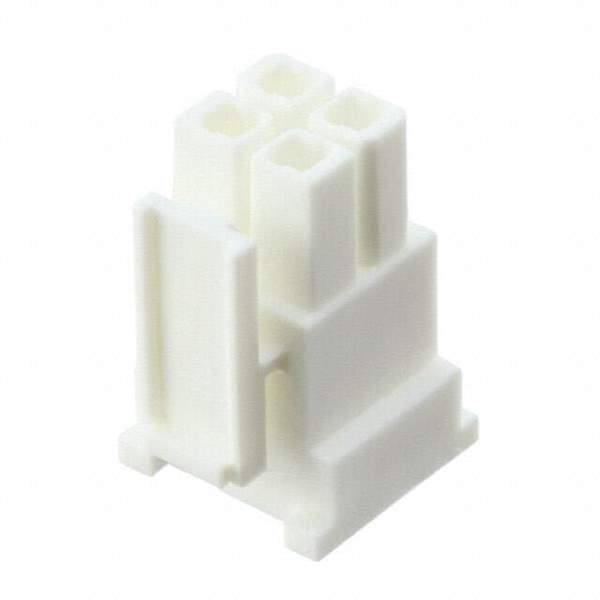

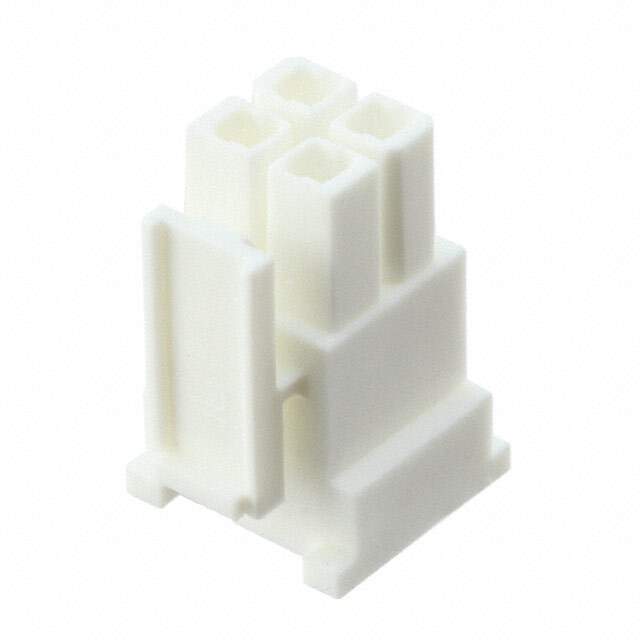

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr Samtec Inc.
Series Power Mate® IPBD
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 4
Pitch 0.165" (4.20mm)
Number of Rows 2
Row Spacing 0.165" (4.20mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Note Contacts Not Included
Base Product Number IPBD-02
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Names SAM10543,Q3698190AB,IPBD-02-D-ND
Standard Package 1
Win Source Part Number 1054508-IPBD-02-D
Ultra Librarian 3D Model Ultra Librarian IPBD-02-D CAD Model

Description

The Samtec Inc. IPBD-02-D is a rectangular connector housing that has four positions and is a part of the Power Mate™ IPBD series.

  • Manufacturer: Samtec Inc.
  • Series: Power Mate™ IPBD
  • Type: rectangular connector housing
  • Positions: 4
  • Pitch: 0.165" (4.20mm)
  • Connector Type: receptacle
  • Contact Type: female socket
  • Rows: 2
  • Row Spacing: 0.165" (4.20mm)
  • Fastening Type: latch lock
  • Packaging: bulk
  • Contact Termination: crimp
  • Contacts Included: no
  • Win Source Part Number: 1054508-IPBD-02-D
