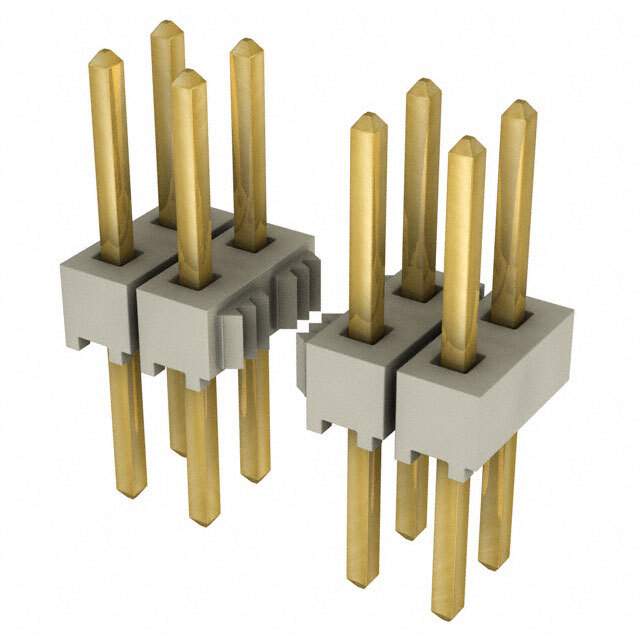

Same model may have multiple batches, images only for reference.

HTSW-108-08-G-D

Name: HTSW-108-08-G-D
Brand: Samtec Inc.
SKU: 998071
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HTSW-108-08-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Datasheet	HTSW-108-08-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	HTSW
Package	Bag
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.200" (5.08mm)
Overall Contact Length	0.530" (13.46mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	HTSW-108
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	998071-HTSW-108-08-G-D
Ultra Librarian 3D Model	Ultra Librarian HTSW-108-08-G-D CAD Model

Alternative Products

Description

The Samtec Inc. HTSW-108-08-G-D is a 16-position, 2-row, unshrouded header connector.

Pitch: 0.100" (2.54mm)
Mounting Type: Through-Hole
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Material: Phosphor Bronze
Contact Plating: Gold
Current Rating: Varies by Wire Gauge
RoHS Compliant: Yes
Flammability Rating: UL94 V-0
Temperature Range: -55°C ~ 125°C
Manufacturer: Samtec Inc.
