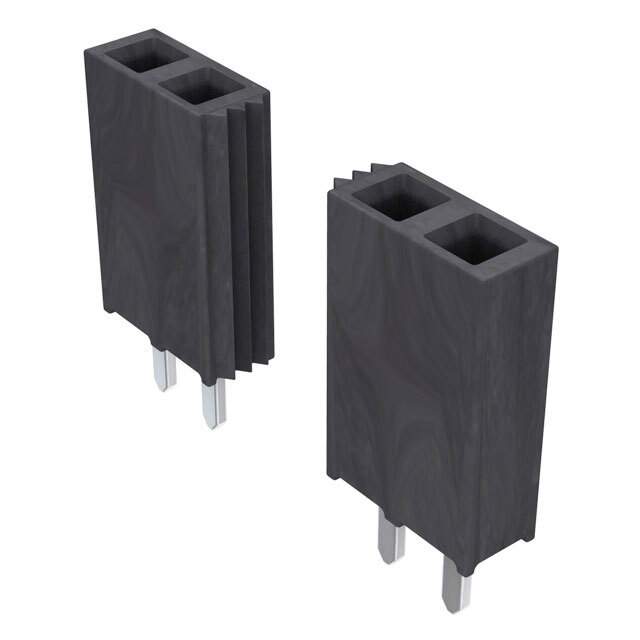

The SSW-114-01-T-S is a socket strip connector manufactured by Samtec Inc., part of their SSW series of board-to-board interconnect solutions. It is designed for through-hole mounting and offers a reliable and versatile connection in various electronic applications.

Applications

• Board-to-board Connections: Used to connect two PCBs together in electronic devices.
• Signal Routing: Facilitates signal routing within electronic systems.
• Prototyping: Useful in prototyping for quick and easy connections.
• Consumer Electronics: Integrated in consumer electronic products for internal board connections.
• Medical Devices: Employed in medical equipment for reliable signal transmission.

Features

• Number of Positions: 14 (single row) providing a single line of connection points.
• Pitch: 0.100" (2.54 mm) pitch which ensures compatibility with standard PCB grid patterns.
• Mounting Type: Through-hole mounting for stable and secure connection to the PCB.
• Row Spacing: Single row configuration.
• Body Orientation: Straight for vertical board stacking or parallel board connections.
• Insulator Material: Black Liquid Crystal Polymer (LCP) offering excellent high-temperature performance and chemical resistance.
• Contact Material: Phosphor Bronze contacts provide good conductivity and durability.
• Plating: Gold plating on the contacts ensures reliable electrical performance and corrosion resistance.

Benefits

• Reliable Connection: Gold-plated contacts ensure a stable and dependable electrical connection, minimizing signal loss and ensuring long-term reliability.
• Durable Construction: LCP insulator and Phosphor Bronze contacts provide excellent durability and a long service life.
• Easy Installation: Through-hole mounting simplifies the installation process, especially in prototyping and small production runs.
• Versatile Application: Suitable for a wide range of board-to-board connection needs, from prototyping to production.
• High-Temperature Performance: LCP insulator material offers excellent performance in high-temperature environments.

The SSW-114-01-T-S socket strip connector is a reliable and versatile solution for board-to-board connectivity. Its durable construction, gold-plated contacts, and ease of installation make it suitable for a variety of electronic applications. The single-row configuration offers a compact solution for applications where space is limited.
