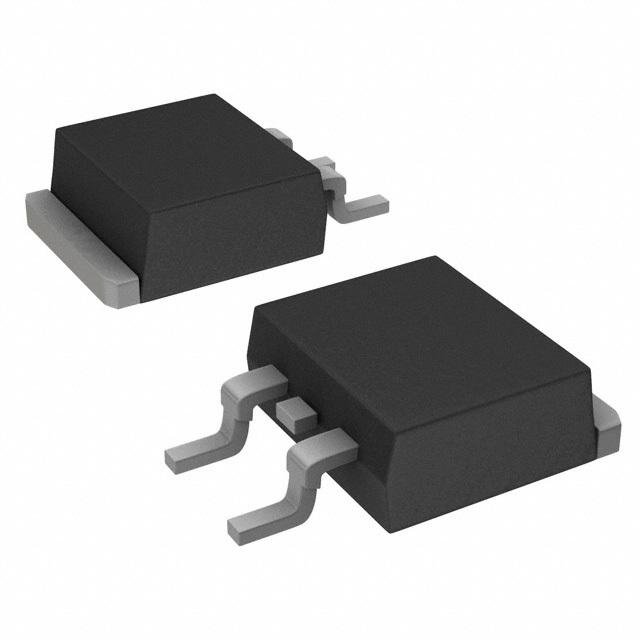

NGB8206ANSL3G Littelfuse Inc.
Same model may have multiple batches, images only for reference.

NGB8206ANSL3G

Part No NGB8206ANSL3G
Manufacturer Littelfuse Inc.
Catalog IGBTs - Single
Description IGBT 390V 20A 150W D2PAK3
Datasheet
NGB8206ANSL3G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Tube/Rail
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 390V
Maximum Current Collector 20A
Pulsed Collector Current 50A
Collector-emitter saturation voltage(Max) 1.9V @ 4.5V, 20A
Maximum Power Dissipation 150W
Input Type Logic
Turn-on and Turn-off delay time -/5μs
Testing Conditions 300V, 9A, 1 kOhm, 5V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package D2PAK
Win Source Part Number 1082969-NGB8206ANSL3G
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NGB8206ANSL3G CAD Model

Description

The NGB8206ANSL3G is an active IGBT type electronic component manufactured by Littelfuse Inc. and supplied by Win Source.

  • Product: IGBT
  • Manufacturer: Littelfuse Inc.
  • Maximum Collector-Emitter Breakdown Voltage: 390V
  • Maximum Current Collector: 20A
  • Maximum Power Dissipation: 150W
  • Package: D2PAK
  • Operating Temperature Range: -55°C to 175°C
  • Turn-On and Turn-Off Delay Time: -/5μs
