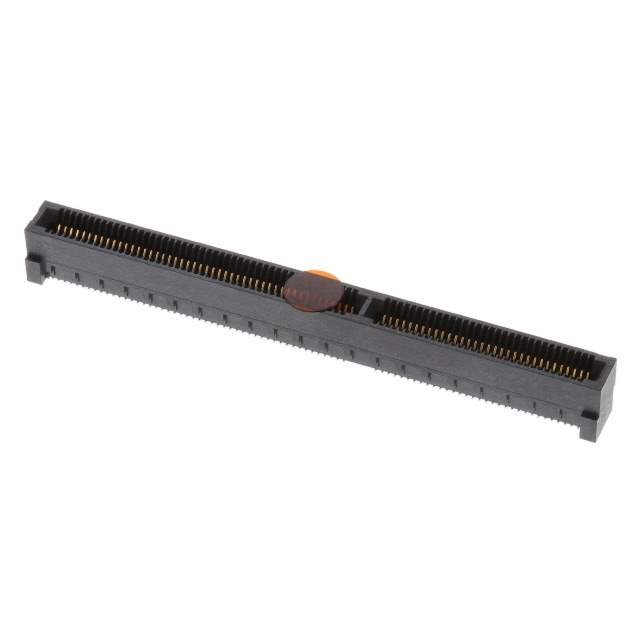

HSEC8-180-01-L-DV-A-K Real Image
Same model may have multiple batches, images only for reference.

HSEC8-180-01-L-DV-A-K

Part No HSEC8-180-01-L-DV-A-K
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 160P 0.031 / 160 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Datasheet
HSEC8-180-01-L-DV-A-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series Edge Rate™ HSEC8
Package Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 80
Number of Positions 160
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide, Locking Ramp
Mounting SMD (SMT)
Termination Solder
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number HSEC8-180
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names HSEC8-180-01-L-DV-A-K-ND,SAM11354
Standard Package 42
Win Source Part Number 958693-HSEC8-180-01-L-DV-A-K
Ultra Librarian 3D Model Ultra Librarian HSEC8-180-01-L-DV-A-K CAD Model

Description

The Edge Rate™ HSEC8 series connector from Samtec Inc. is a female type connector with cantilever contacts.

  • Series: Edge Rate™ HSEC8
  • Connector Type: female
  • Contact Type: cantilever
  • Pitch: 0.031" (0.80mm)
  • Row Spacing: 0.031" (0.80mm)
  • Positions: 160
  • Card Thickness: 0.062" (1.57mm)
  • Card Type: non specified - dual edge
  • Contact Finish: RoHS compliant gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Insulation Material: liquid crystal polymer (LCP)
  • Contact Material: beryllium copper
  • Temperature Range: -55°C ~ 125°C
  • RoHS: compliant
  • Application: edgeboard connector applications
