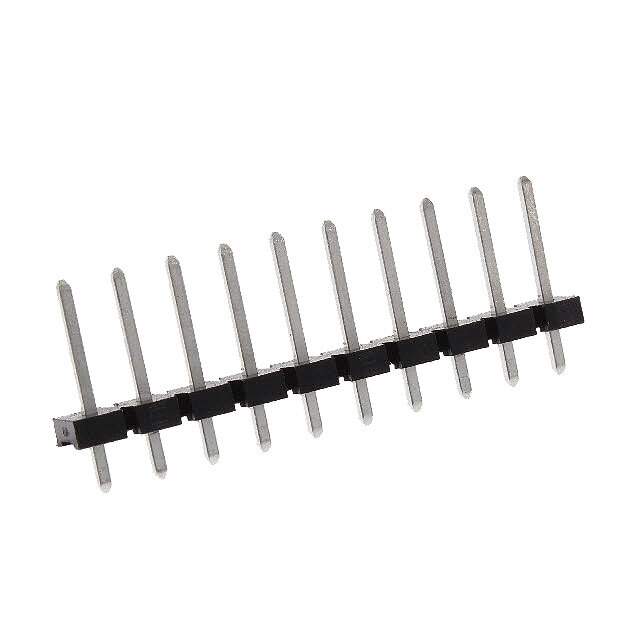

FWS-10-01-T-S Real Image
Same model may have multiple batches, images only for reference.

FWS-10-01-T-S

Part No FWS-10-01-T-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 5.08MM / Connector Header Through Hole 10 position 0.200" (5.08mm)
Datasheet
FWS-10-01-T-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FWS
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.200" (5.08mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.470" (11.94mm)
Contact Length - Post 0.180" (4.57mm)
Overall Contact Length 0.750" (19.05mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Insulation Color Black
Current Rating (Amps) 11.4A per Contact
Voltage Rating 500VAC
Base Product Number FWS-10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM11293,FWS-10-01-T-S-ND
Standard Package 1
Win Source Part Number 961412-FWS-10-01-T-S
Ultra Librarian 3D Model Ultra Librarian FWS-10-01-T-S CAD Model

Description

The FWS-10-01-T-S is a 10-pin male header connector from Samtec Inc. used in board-to-board applications.

  • Pins: 10
  • Gender: Male
  • Application: Board-to-Board
  • Pitch: 0.200 inches
  • Voltage Rating: 500VAC
  • Current Rating: 11.4A per contact
  • Contact Finish: Tin
  • Insulation Material: Polyester, Glass-Filled
  • Mounting: Through-Hole
  • Shroud: Unshrouded
  • Operating Temperature: -55°C to 105°C
