Same model may have multiple batches, images only for reference.

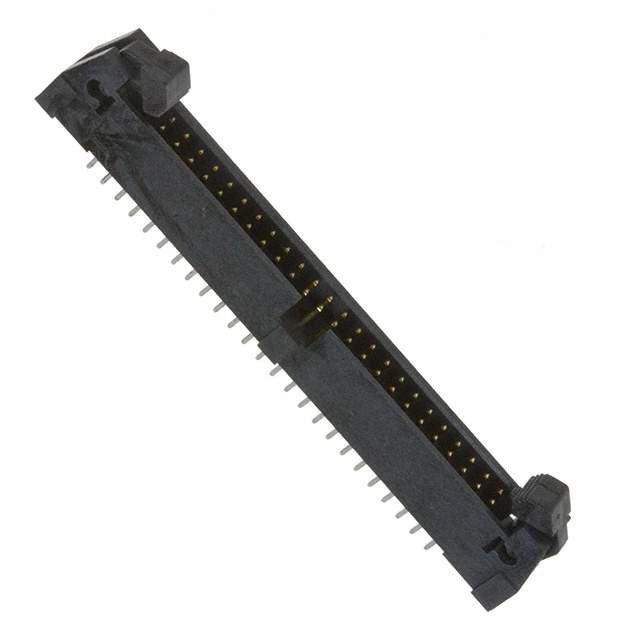

EHT-125-01-S-D Real Image
Same model may have multiple batches, images only for reference.

EHT-125-01-S-D

Part No EHT-125-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 50POS 2MM
Datasheet
EHT-125-01-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features Connector Header Through Hole 50 position 0.079" (2.00mm)
Manufacturer Samtec Inc.
Series EHT
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole
Family Name EHT-125
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number EHT12501SD, SAM8563
Quantity per package 8
Popularity High
Supply and Demand Status Balance
Win Source Part Number 917967-EHT-125-01-S-D
Ultra Librarian 3D Model Ultra Librarian EHT-125-01-S-D CAD Model

Description

The Samtec Inc. EHT-125 series connector header is a through-hole component with 50 positions and 0.079 inches (2.00mm) pitch.

  • Manufacturer: Samtec Inc.
  • Mounting: Through-Hole
  • Positions: 50
  • Pitch: 0.079 inches (2.00mm)
  • Temperature Range: -55°C to 125°C
  • Package: Tube
  • Family Name: EHT-125
  • Supply and Demand: Balance
  • REACH: Unaffected
  • ECCN: EAR99
  • Estimated Production Lead Time: 8 weeks
