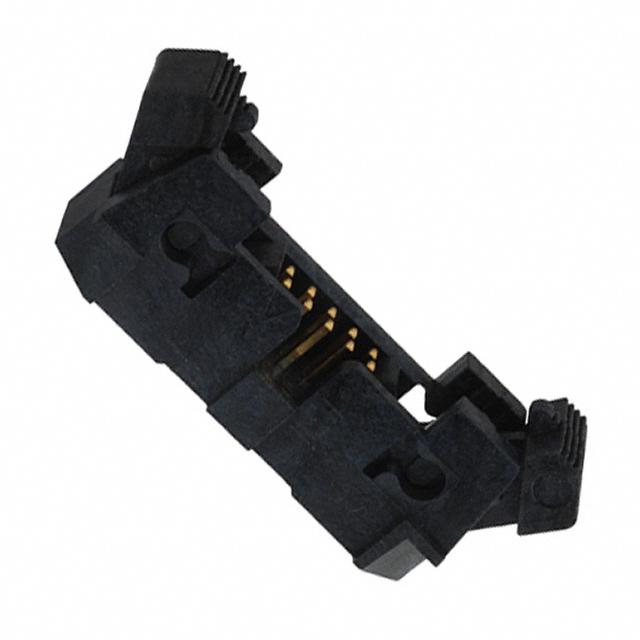

EHF-105-01-L-D Samtec Inc.
Same model may have multiple batches, images only for reference.

EHF-105-01-L-D

Part No EHF-105-01-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER .05" 10POS DUAL T/H
Datasheet
EHF-105-01-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.107" (2.71mm)
Overall Contact Length 0.350" (8.89mm)
Insulation Height 0.325" (8.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C to 125°C
Insulation Color Black
Current Rating 1.75A
Win Source Part Number 1016632-EHF-105-01-L-D
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian EHF-105-01-L-D CAD Model

Description

The EHF-105-01-L-D is a male pin header connector designed by Samtec Inc.

  • Connector Style: Board to cable/wire
  • Number of Positions: 10
  • Number of Rows: Two
  • Shrouded: Four walls
  • Pitch Mating: 0.050" (1.27mm)
  • Contact Finish Mating: Gold, 10μin (0.25μm)
  • Contact Finish Post: Tin
  • Mounting Type: Through Hole
  • Fastening Type: Latch Lock/Eject Hooks
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass-Filled
  • Temperature Range: -55°C to 125°C
  • RoHS Compliant: Yes
  • Application: Industrial
