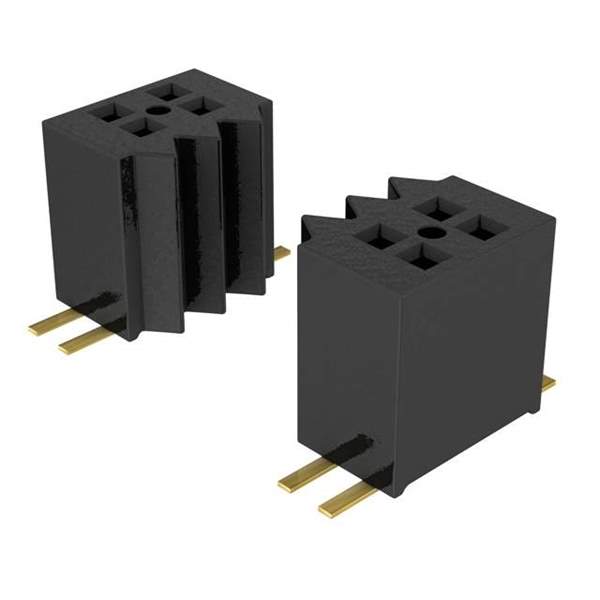

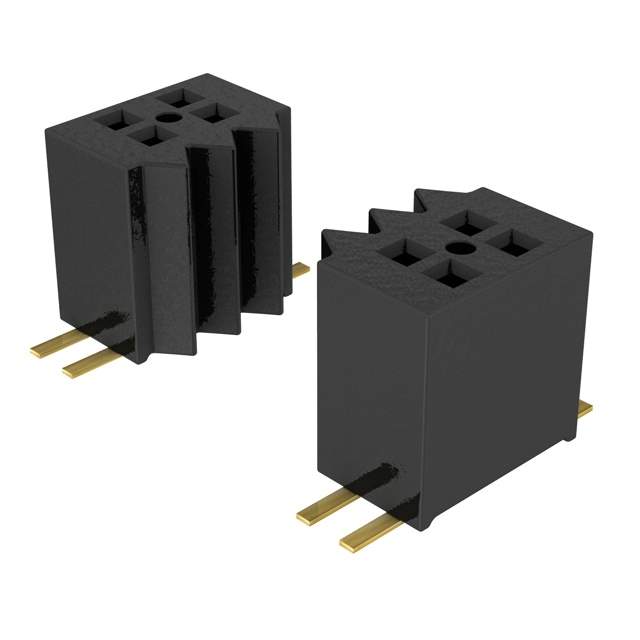

CLE-112-01-G-DV Real Image
Same model may have multiple batches, images only for reference.

CLE-112-01-G-DV

Part No CLE-112-01-G-DV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 24POS 0.031 GOLD SMD / 24 Position Receptacle, Pass Through Connector 0.031" (0.80mm) Surface Mount Gold
Datasheet
CLE-112-01-G-DV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLE
Package Bulk
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board
Number of Positions 24
Number of Positions Loaded All
Pitch - Mating 0.031" (0.80mm)
Number of Rows 2
Row Spacing - Mating 0.047" (1.20mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.130" (3.30mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Current Rating (Amps) 2.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Contact Finish Thickness - Post 10.0µin (0.25µm)
Base Product Number CLE-112
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1142-12
Standard Package 1
Win Source Part Number 1052360-CLE-112-01-G-DV
Ultra Librarian 3D Model Ultra Librarian CLE-112-01-G-DV CAD Model

Description

This electronic component is a connector that belongs to the CLE series.

  • Win Source Part Number: 1052360-CLE-112-01-G-DV
  • Positions: 24
  • Type: Receptacle
  • Contact Type: Female socket
  • Fastening Type: Push-pull
  • Mounting: Soldered
  • Material: Beryllium copper
  • Voltage Rating: - volts
  • Pitch: 0.031 inches
  • Row Spacing: 0.047 inches
  • Color: Black
  • Temperature Range: -55°C to 125°C
