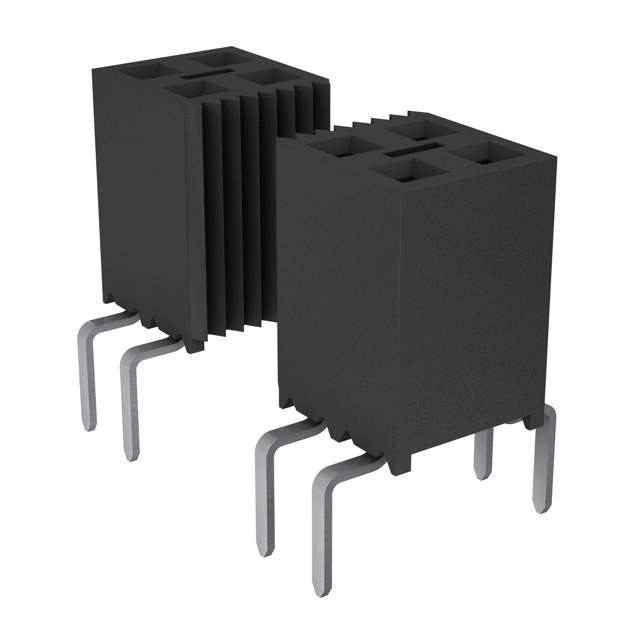

The BCS-134-L-D-PE is a receptacle connector by Samtec Inc.

• Connector Type: Receptacle
• Positions: 68
• Rows: 2
• Type: Receptacle and Pass-Through
• Contact Type: Female Socket
• Positions Loaded: All
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tube
• Contact Material: Phosphor Bronze
• Voltage Rating: 475VAC
• Insulation Material: Liquid Crystal Polymer (LCP) and Glass Filled
• Insulation Color: Black
• Mounting Type: Through-Hole
• Row Spacing: 0.100 inches (2.54mm)
• Contact Finish (Mating): Gold
• Contact Finish (Post): Tin
• Contact Finish Thickness (Mating): 10.0µin (0.25µm)
• Insulation Height: 0.290 inches (7.37mm)
• Contact Shape: Square
• Temperature Range: -55°C to 125°C
• Current Rating: 4.6A per contact
