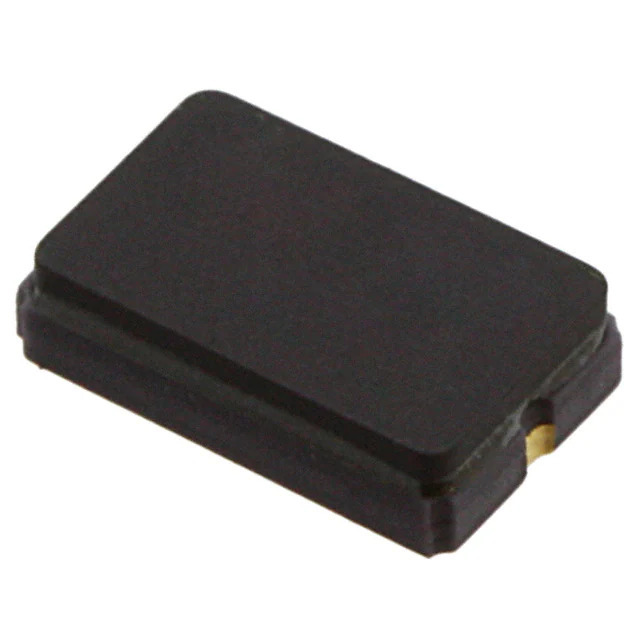

Same model may have multiple batches, images only for reference.
AA08000004 TXC CORPORATION
Same model may have multiple batches, images only for reference.

AA08000004

Part No AA08000004
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 16PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series AA
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 16pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1366390-AA08000004
Ultra Librarian 3D Model Ultra Librarian AA08000004 CAD Model

Description

The AA08000004 is an 8 MHz crystal from the AA series manufactured by TXC CORPORATION.

  • Frequency: 8 MHz
  • Series: AA
  • Package / Case: 2-SMD, No Lead
  • Operating Temperature: -40°C to 85°C
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 16pF
  • Equivalent Series Resistance (ESR): 150 Ohms
  • Size / Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Height - Seated (Max): 0.053" (1.35mm)
  • ECCN: EAR99
