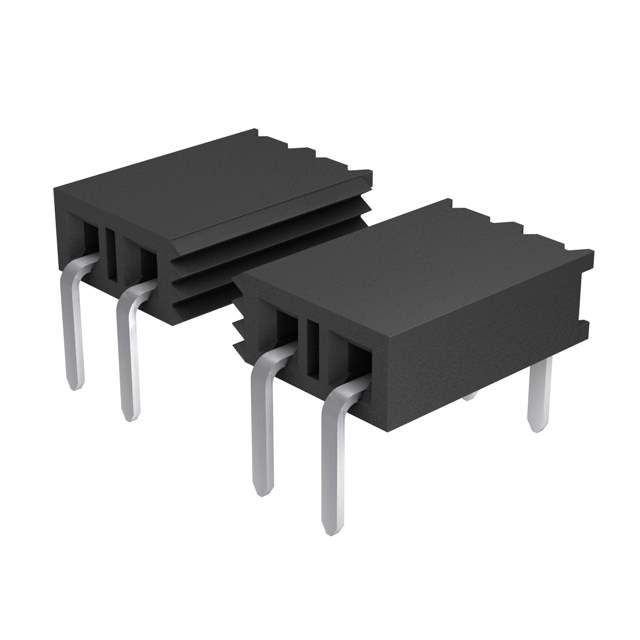

BCS-112-L-S-HE

Part No BCS-112-L-S-HE
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description BOX CONNECTOR SOCKET STRIP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Packaging Tube/Rail
Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 12
Number of Positions Loaded 11
Pitch - Mating 2.54mm
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Insulation Color Black
Insulation Height 0.110" (2.79mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -55°C to 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating 4.6A per Contact
Voltage Rating 475VAC
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Win Source Part Number 200918-BCS-112-L-S-HE
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BCS-112-L-S-HE CAD Model

Description

The BCS-112-L-S-HE is a high-end electronic component designed for optimal performance in various applications. Its precision engineering ensures reliability and efficiency, making it an ideal choice for both commercial and industrial uses.

Features and Benefits

  • High precision and reliability
  • Efficient power consumption
  • Compact design for easy integration
  • Wide operating temperature range

Applications

  • Consumer electronics
  • Industrial automation systems
  • Robotics
  • Telecommunication devices

The BCS-112-L-S-HE offers superior performance in challenging environments, thanks to its robust construction and cutting-edge technology. It's an essential component for projects demanding the highest standards.
