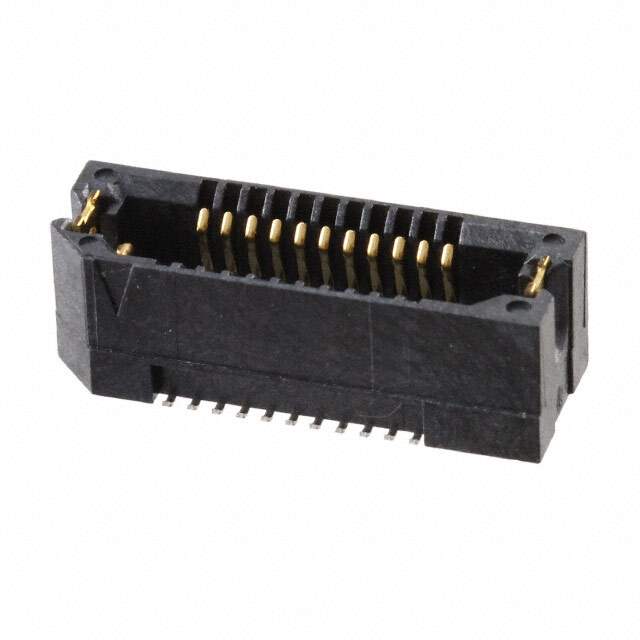

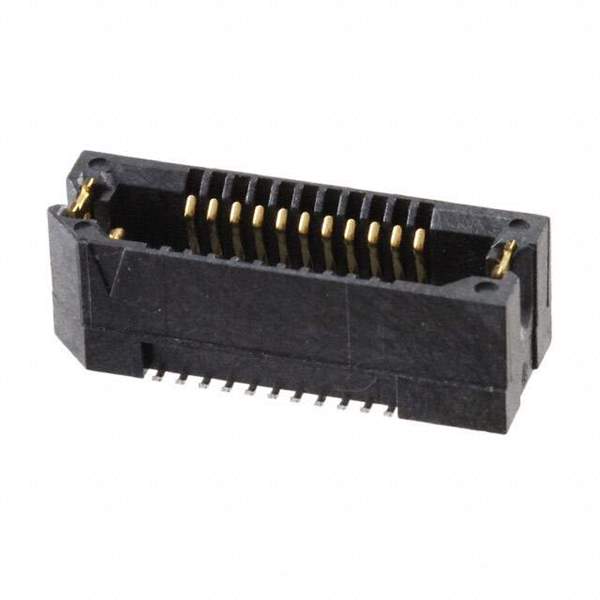

ASP-137969-01

Name: ASP-137969-01
Brand: Samtec Inc.
SKU: 565001
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ASP-137969-01
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	1. STANDARD PART SET UP AS ASP.
Datasheet	ASP-137969-01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	ASP
Packaging	Tray
Connector Type	Socket, Center Strip Contacts
Number of Positions	22
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting	SMD
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	30μin (0.76μm)
Height Above Board	0.215" (5.46mm)
Win Source Part Number	1147689-ASP-137969-01
Manufacturer Homepage	www.samtec.com/
Popularity	Medium
Supply and Demand Status	Limited
Family Name	ASP-137969-01
Introduction Date	December 06, 2011
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian ASP-137969-01 CAD Model

Description

The ASP series from Samtec Inc. is a socket, center strip contacts connector with 22 positions in 2 rows.

Positions: 22
Rows: 2
Pitch: 0.031" (0.80mm)
Contact Finish: Gold
Contact Finish Thickness: 30μin (0.76μm)
Height Above Board: 0.215" (5.46mm)
Mounting Type: SMD
ECCN: EAR99
Estimated EOL Date: 2026
Packaging: Tray
Suitable for: Connectors and Interconnects
