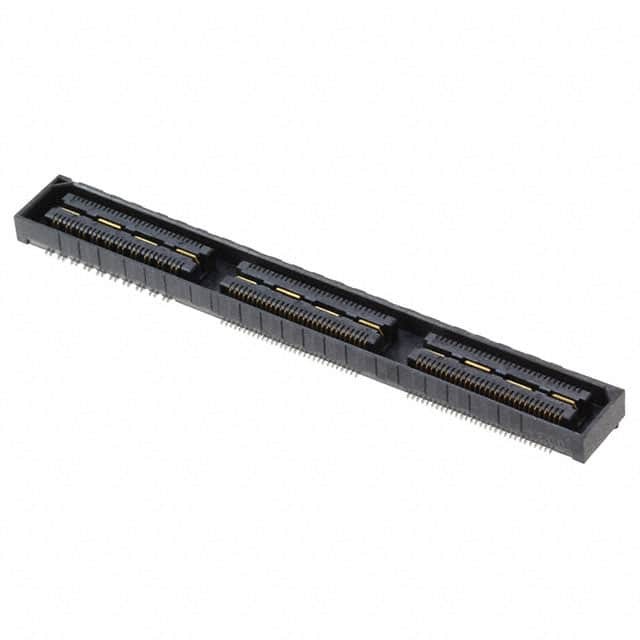

The 847106-ASP-122953-01 is a rectangular connector from the ASP series by Samtec Inc. It is an array connector with 160 positions and a pitch of 0.020" (0.50mm).

• Series: ASP
• Connector Type: Array
• Number of Positions: 160
• Pitch: 0.020" (0.50mm)
• Features: Board Guide, Ground Bus (Plane)
• Connector Style: Receptacle
• Contact Style: Center Strip
• Number of Rows: 2
• Contact Finish: Gold with Flash Thickness
• Height Above Board: 0.128" (3.25mm)
• Mounting Type: Surface Mount
• Operating Temperature: -55°C to 125°C
• Packaging: Bulk
• Standard Package Quantity: 48 pcs
