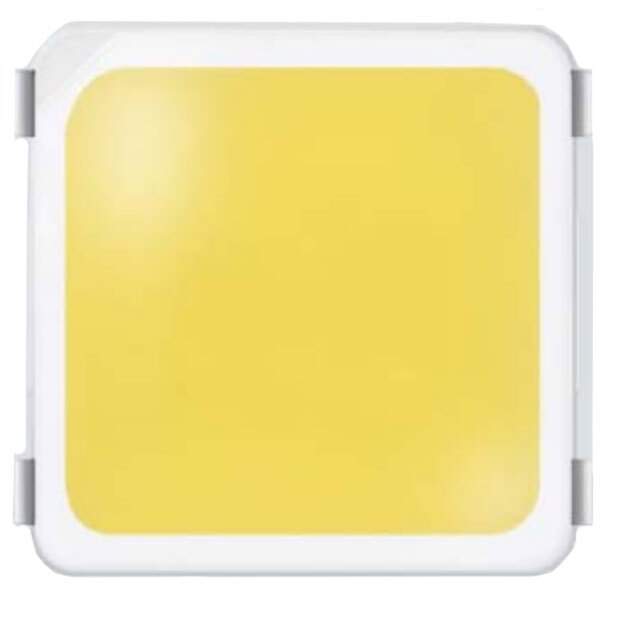

SPMWHT32BMD5YBT3S0 Real Image
Same model may have multiple batches, images only for reference.

SPMWHT32BMD5YBT3S0

Part No SPMWHT32BMD5YBT3S0
Manufacturer Samsung
Catalog LED Lighting - White
Description MIDDLE POWER LED SERIES / LED Lighting series White, Neutral 4000K 3-Step MacAdam Ellipse 5.9V 65mA 115° 1212 (3030 Metric)
Datasheet
SPMWHT32BMD5YBT3S0 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LM302C
Product Status Not For New Designs
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Flux @ 25°C, Current - Test 64lm (58lm ~ 70lm)
Current - Test 65mA
Voltage - Forward (Vf) (Typ) 5.9V
Lumens/Watt @ Current - Test 167 lm/W
CRI (Color Rendering Index) 80
Current - Max 150mA
Viewing Angle 115°
Mounting SMD (SMT)
Package / Case 1212 (3030 Metric)
Supplier Device Package 3030
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.033" (0.85mm)
Thermal Resistance of Package 8°C/W
Base Product Number SPMWHT32
Other Names 1510-2414-6,SPMWHT32BMD5YBT3S0,1510-2414-1,1510-2414-2
Standard Package 4,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238635-SPMWHT32BMD5YBT3S0
Ultra Librarian 3D Model Ultra Librarian SPMWHT32BMD5YBT3S0 CAD Model

Description

The SPMWHT32BMD5YBT3S0 is an electronic component manufactured by Samsung Semiconductor, Inc.

  • Series: LM302C series
  • Use: Suitable for use in a range of electronic applications, including LED lighting systems.
  • CCT: High-quality 4000K 3-Step MacAdam Ellipse CCT
  • CRI: High CRI of 80
  • Description: Reliable and high-quality component that offers excellent performance.
