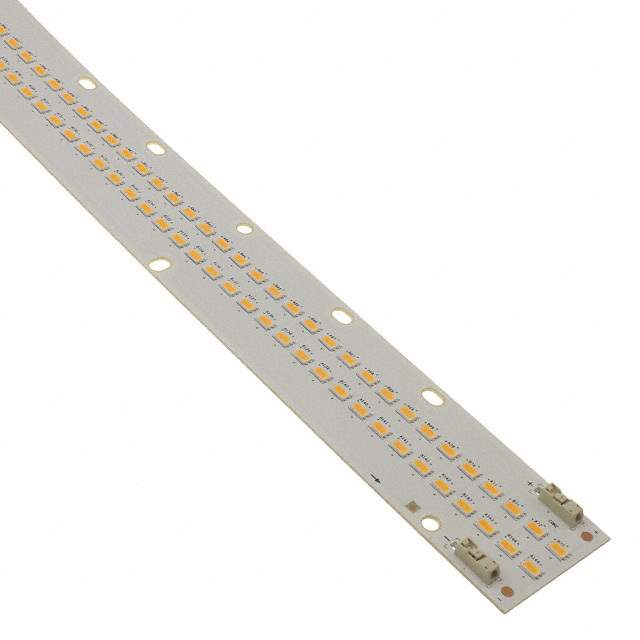

SI-B8VZ91B20WW Real Image
Same model may have multiple batches, images only for reference.

SI-B8VZ91B20WW

Part No SI-B8VZ91B20WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD FSERIES GEN3 3000K STRIP / LED Lighting COBs Engines Modules LED Module series White, Warm Linear Light Strip
Datasheet
SI-B8VZ91B20WW Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series F-Series Gen3
Package Bulk
Type LED Module
Color White, Warm
CCT (K) 3000K
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 17340lm (Typ)
Current - Test 2.24A
Temperature - Test 65°C
Voltage - Forward (Vf) (Typ) 46V
Lumens/Watt @ Current - Test 168 lm/W
CRI (Color Rendering Index) 80
Features With Connector
Dimension 1120.00mm L x 39.80mm W
Height 5.20mm
Lens Type Flat
Base Product Number SI-B8
Other Names 1510-2229
Standard Package 96
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241204-SI-B8VZ91B20WW
Ultra Librarian 3D Model Ultra Librarian SI-B8VZ91B20WW CAD Model

Description

The F-Series Gen3 LED module is a linear light strip that features a forward voltage of 46V and a CCT of 3000K.

  • Color: Warm white light
  • CRI: 80
  • Lumens/Watt Ratio: 168 lm/W @ a test current of 2.24A and a temperature of 65 degrees Celsius
  • Height: 5.20mm
  • Dimension: 1120.00mm L x 39.80mm W
  • Ideal for: Use in LED lighting applications that require linear light strips
  • Connector: Comes with a connector for easy installation
