Same model may have multiple batches, images only for reference.

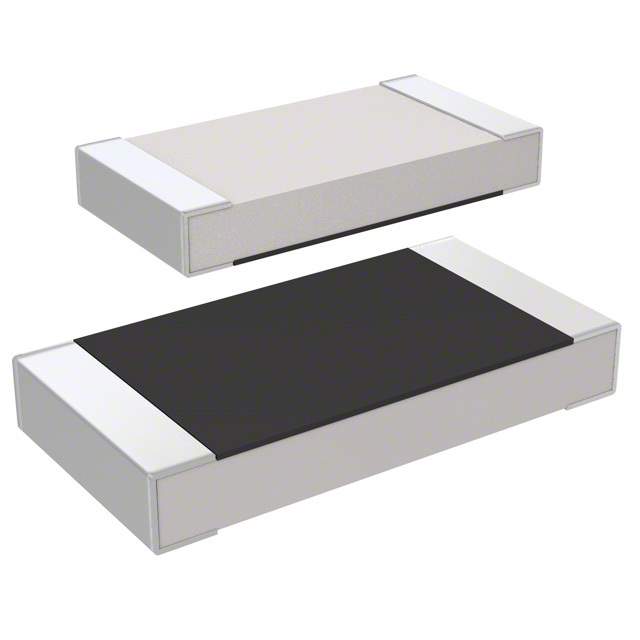

RC5025F120CS Real Image
Same model may have multiple batches, images only for reference.

RC5025F120CS

Part No RC5025F120CS
Manufacturer Samsung
Catalog Chip Resistor - Surface Mount
Description RES 12 OHM 1% 2/3W 2010  /  12 Ohms ±1% 0.667W, 2/3W Chip Resistor 2010 (5025 Metric) Moisture Resistant Thick Film
Datasheet
RC5025F120CS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RC
Package Tape & Reel (TR)
Resistance 12 Ohms
Tolerance ±1%
Power (Watts) 0.667W, 2/3W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.026" (0.66mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 4,000
Win Source Part Number 991071-RC5025F120CS
Ultra Librarian 3D Model Ultra Librarian RC5025F120CS CAD Model

Description

The Samsung 991071-RC5025F120CS is a chip resistor designed for use in electronic devices. It has a resistance of 12 Ohms and a power rating of 0.667W.

  • Series: RC
  • Tolerance: ±1%
  • Moisture Resistance: Yes
  • Temperature Coefficient: ±100ppm/°C
  • Package: Tape & Reel (TR)
  • Height: 0.026" (0.66mm)
  • Standard Package: 4,000 resistors
  • Supplier Device Package: 2010
  • Temperature Range: -55°C to 155°C
