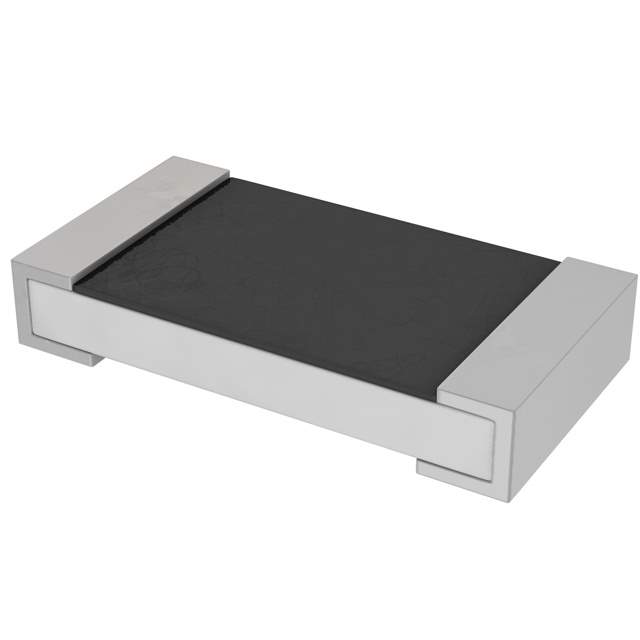

PT1206FR-7W0R18L Real Image
Same model may have multiple batches, images only for reference.

PT1206FR-7W0R18L

Part No PT1206FR-7W0R18L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.18 OHM 1% 1/2W 1206
Datasheet
PT1206FR-7W0R18L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Yageo
Packaging Reel - TR
Status Active
Resistance (Ohms) 0.18
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package 1206
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Win Source Part Number 210302-PT1206FR-7W0R18L
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PT1206FR-7W0R18L CAD Model

Description

The Yageo 210302-PT1206FR-7W0R18L is a thick film resistor with a resistance of 0.18 ohms and a power rating of 0.5W. This resistor is suitable for use in current sensing applications.

  • Resistance: 0.18 ohms
  • Power Rating: 0.5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Automotive AEC-Q200 Certified: Yes
  • Moisture Resistant: Yes
  • Height: 0.026 inches
  • Package: 1206
  • Temperature Range: -55°C to 155°C
