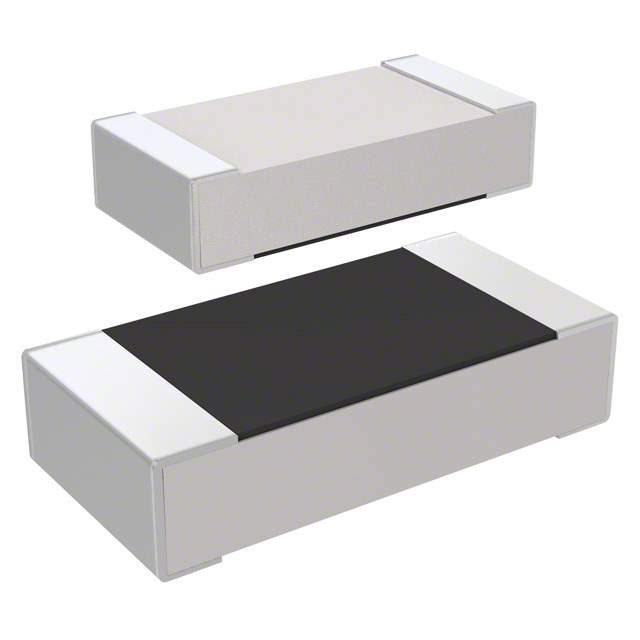

Same model may have multiple batches, images only for reference.

RC3216J6R2CS

Name: RC3216J6R2CS
Brand: Samsung
SKU: 1383304
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	RC3216J6R2CS
Manufacturer	Samsung
Catalog	Chip Resistor - Surface Mount
Description	RES SMD 6.2 OHM 5% 1/4W 1206 / 6.2 Ohms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant Thick Film
Datasheet	RC3216J6R2CS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Samsung
Series	RC
Package	Tape & Reel
Resistance	6.2 Ohms
Tolerance	±5%
Power (Watts)	0.25W, 1/4W
Composition	Thick Film
Features	Moisture Resistant
Temperature Coefficient	±300ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.026" (0.65mm)
Number of Terminations	2
Failure Rate	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Standard Package	5,000 pcs
Win Source Part Number	1383304-RC3216J6R2CS
Ultra Librarian 3D Model	Ultra Librarian RC3216J6R2CS CAD Model

Description

The RC3216J6R2CS is a chip resistor from the RC series by Samsung. It is a moisture-resistant resistor with a power rating of 0.25W (1/4W).

Series: RC
Moisture Resistance: Yes
Power Rating: 0.25W (1/4W)
Resistance: 6.2 Ohms
Tolerance: ±5%
Composition: Thick Film
Temperature Coefficient: ±300ppm/°C
Package: Tape and Reel
Standard Package: 5,000 pieces
Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height: 0.026" (0.65mm)
Operating Temperature: -55°C to 155°C
