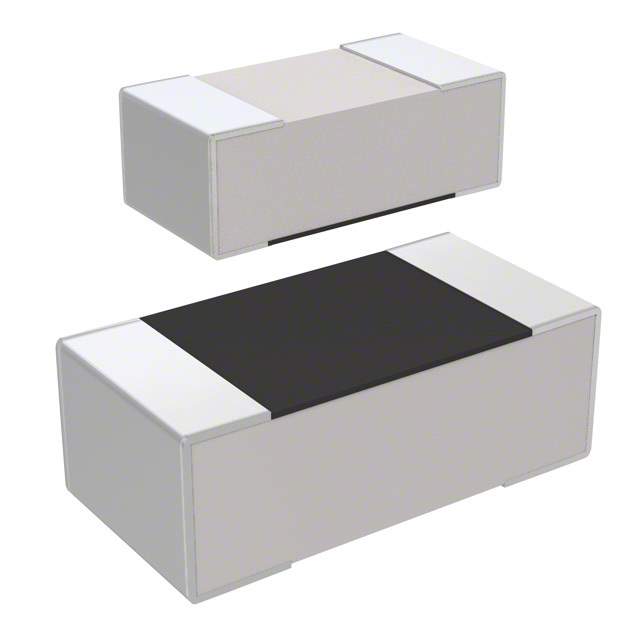

Products specifications

Manufacturer Samsung Electro-Mechanics
Packaging Reel
Resistance 12 kOhms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package 0603
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Maximum) 0.55mm
Number of Terminations 2
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805023-RC1608F123CS
Ultra Librarian 3D Model Ultra Librarian RC1608F123CS CAD Model

Description

This Samsung Electro-Mechanics resistor is a high-quality component.

  • Resistance: 12 kOhms
  • Power Rating: 0.1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Dimensions: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height: 0.55mm
  • Supplier Device Package: 0603
  • MSL Level: 1 (Unlimited)
