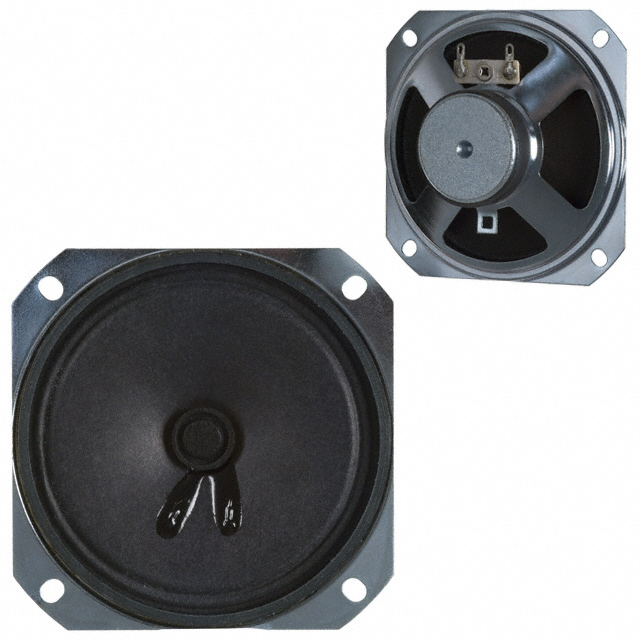

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Technology Magnetic
Type General Purpose
Frequency Range 310 Hz ~ 4 kHz
Frequency - Self Resonant 310Hz
Impedance 8 Ohms
Efficiency - dBA 91.00
Efficiency - Testing 500mW/500mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 500 mW
Power - Max 1 W
Port Location Top
Shape Round
Material - Cone Paper
Material - Magnet Ferrite
Termination Solder Eyelet(s)
Size / Dimension 2.756" Dia (70.00mm)
Height - Seated (Max) 0.846\
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1547294-GF0701
Ultra Librarian 3D Model Ultra Librarian GF0701 CAD Model
