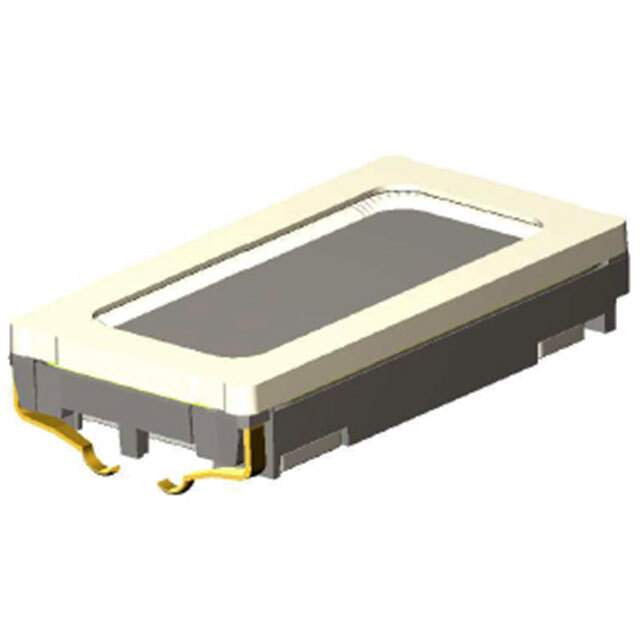

2403 260 00177 Real Image
Same model may have multiple batches, images only for reference.

2403 260 00177

Part No 2403 260 00177
Manufacturer Knowles
Catalog Speakers
Description SPEAKER 8OHM 700MW TOP PORT 97DB  /  8 Ohms General Purpose Speaker 700 mW 300 Hz ~ 20 kHz Top Rectangular
Datasheet
2403 260 00177 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Speakers
Mfr Knowles
Series Wildcat S9
Package Tray
Product Status Obsolete
Technology Magnetic
Type General Purpose
Frequency Range 300 Hz ~ 20 kHz
Frequency - Self Resonant 510Hz
Impedance 8 Ohms
Efficiency - dBA 97.00
Efficiency - Testing 1W/1M
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 700 mW
Power - Max 1 W
Port Location Top
Shape Rectangular
Material - Cone Polyetheretherketone (PEEK)
Material - Magnet Nd-Fe-B
Termination Spring Type
Dimension 0.630" L x 0.354" W (16.00mm x 9.00mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8518.29.8000
Other Names 423-1401
Standard Package 1,600
Win Source Part Number 1167212-2403 260 00177
Ultra Librarian 3D Model Ultra Librarian 2403 260 00177 CAD Model

Description

The 1167212-2403 260 00177 is a rectangular speaker from Knowles that is part of the Wildcat S9 series.

  • Frequency Range: 300Hz to 20kHz
  • Impedance: 8 ohms
  • Power Rating: 700mW
  • Maximum Power: 1W
  • Height: 0.118 inches
  • Width: 0.354 inches
  • Termination: Spring type
  • Packaging: Tray
  • Material: Polyetheretherketone (PEEK)
  • Magnet: Nd-Fe-B
  • Efficiency: 97.00 dBA
  • Testing: 1W/1M
