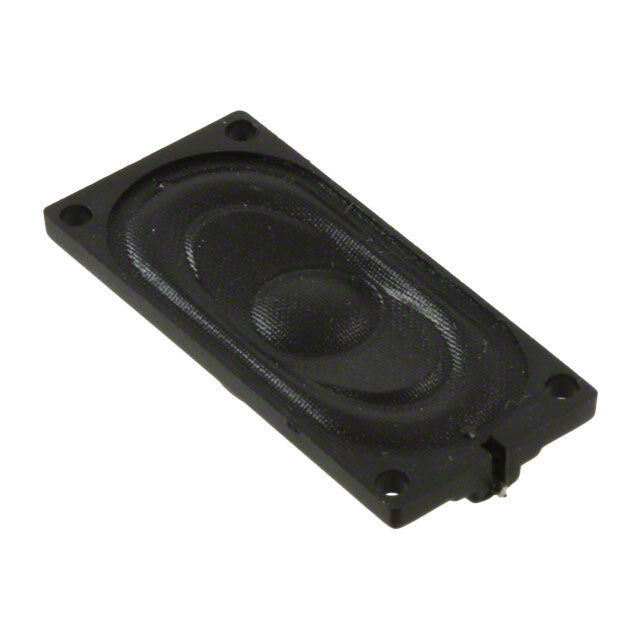

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Technology Magnetic
Type General Purpose
Frequency Range 592 Hz ~ 20 kHz
Frequency - Self Resonant 740Hz
Impedance 8 Ohms
Efficiency - dBA 81.00
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 1 W
Power - Max 1.5 W
Port Location Top
Shape Oval, Rectangular Frame
Material - Cone Cloth
Material - Magnet Nd-Fe-B
Termination Solder Pads
Size / Dimension 0.984" L x 0.551" W (25.00mm x 14.00mm)
Height - Seated (Max) 0.205\
Package Tray
Supply and Demand Status Normal
Win Source Part Number 1547276-GC0251K
Ultra Librarian 3D Model Ultra Librarian GC0251K CAD Model
