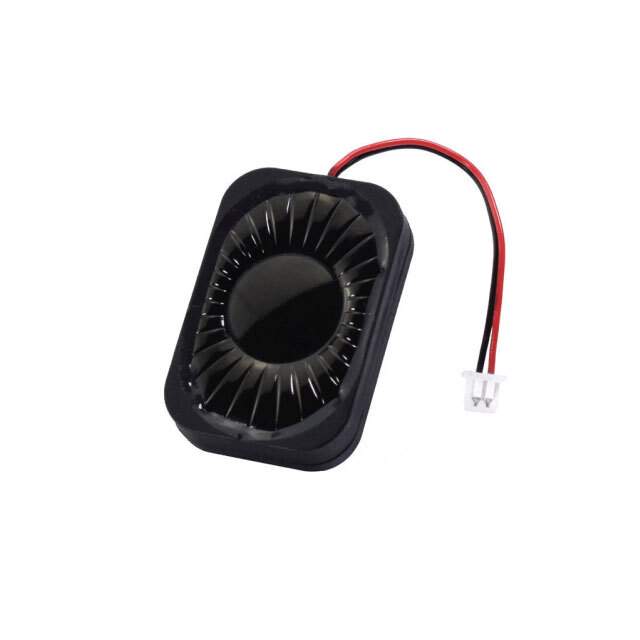

CES-303206-240L40-67 Real Image
Same model may have multiple batches, images only for reference.

CES-303206-240L40-67

Part No CES-303206-240L40-67
Manufacturer CUI Inc.
Catalog Speakers
Description SPEAKER 4OHM 2W TOP PORT 101DB / 4 Ohms General Purpose, Enclosure Included Speaker 2 W 1.28 kHz ~ 20 kHz Top Rectangular
Datasheet
CES-303206-240L40-67 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Speakers
Mfr CUI Devices
Series CES
Package Tray
Technology Magnetic
Type General Purpose, Enclosure Included
Frequency Range 1.28 kHz ~ 20 kHz
Frequency - Self Resonant 1.6kHz
Impedance 4 Ohms
Efficiency - dBA 101.00
Efficiency - Testing 2W/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 2 W
Power - Max 2.5 W
Port Location Top
Shape Rectangular
Material - Cone Polyethylene Naphthalate (PEN)
Material - Magnet Nd-Fe-B
Ingress Protection IP67 - Dust Tight, Waterproof
Termination Wire Leads with Connector
Size / Dimension 1.181" L x 0.787" W (30.00mm x 20.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Temperature Range - Operating -30°C ~ 70°C
Distortion Rating 10% Max @ 2kHz, 2W, 100mm
Base Product Number CES-303206
Standard Package 50
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8518.29.8000
Win Source Part Number 1351360-CES-303206-240L40-67
Ultra Librarian 3D Model Ultra Librarian CES-303206-240L40-67 CAD Model

Description

The CES-303206-240L40-67 is a speaker from CUI Devices that is used in audio products.

  • Application: Audio Products
  • Type: General Purpose
  • Enclosure: Included
  • Package: Tray
  • Standard Package: 50
  • Frequency Range: 1.28 kHz ~ 20 kHz
  • Impedance: 4 Ohms
  • Power Rating: 2 W
  • Maximum Power: 2.5 W
  • Efficiency: 101.00 dBA
  • Waterproof: IP67
  • Shape: Rectangular
  • Port Location: Top
  • Cone Material: Polyethylene Naphthalate (PEN)
  • Magnet Material: Nd-Fe-B
  • Temperature Range: -30°C ~ 70°C
  • ECCN: EAR99
  • MSL: Not Applicable
  • HTSUS: 8518.29.8000
  • Base Product Number: CES-303206
  • Distortion: 10% Max @ 2kHz, 2W, 100mm
