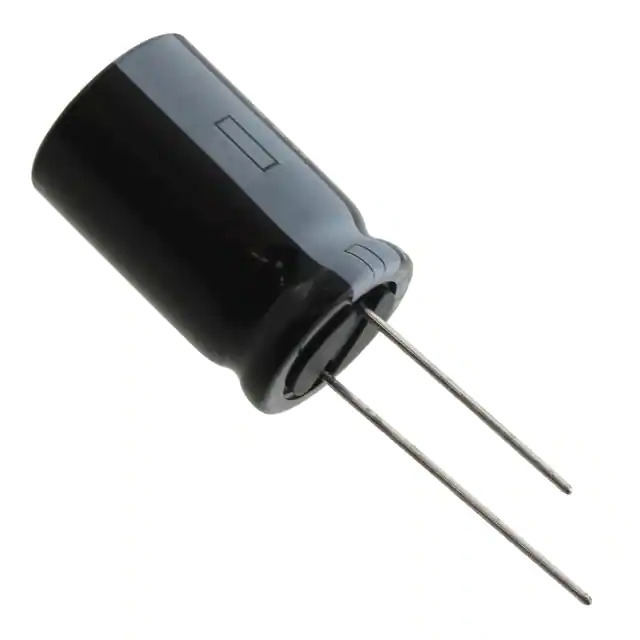

Same model may have multiple batches, images only for reference.
63ZLH820MEFC16X25 Rubycon
Same model may have multiple batches, images only for reference.

63ZLH820MEFC16X25

Part No 63ZLH820MEFC16X25
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 820UF 20% 63V RADIAL / 820 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.638 A @ 120 Hz
Impedance 32 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357724-63ZLH820MEFC16X25
Ultra Librarian 3D Model Ultra Librarian 63ZLH820MEFC16X25 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications manufactured by Rubycon.

  • Capacitance: 820 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Ripple Current: 1.638 A @ 120 Hz
  • Lead Spacing: 0.295 inches (7.50 mm)
  • Size: Diameter 0.630 inches (16.00 mm), Height 1.063 inches (27.00 mm)
  • Mounting Type: Through-Hole
  • Lifetime: 10,000 hours @ 105°C
  • Packaging: Bulk
