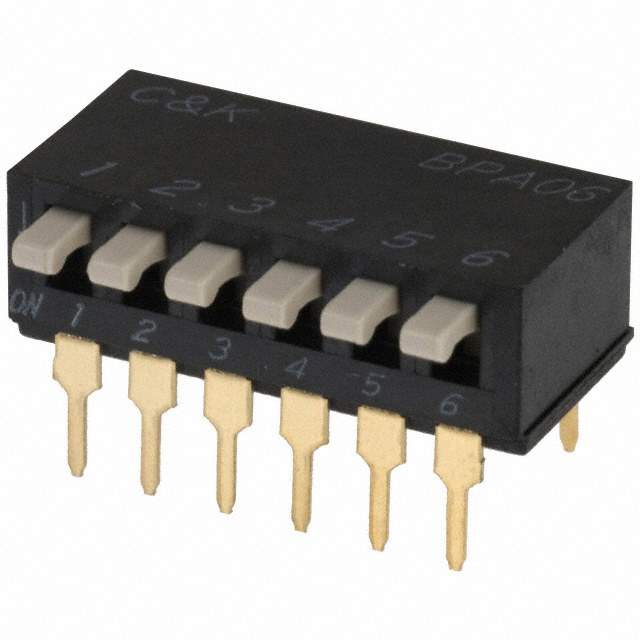

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 18 Weeks
Features Dip Switch SPST Position Through Hole, Right Angle Piano Actuator 100mA 5VDC
Manufacturer C&K Components
Series BPA
Package Tube
Operating Temperature Range -20°C ~ 85°C
Mounting Through Hole, Right Angle
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number CKN6144, *BPA06B, 2266-BPA06B
Quantity per package 25
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864462-BPA06B
Ultra Librarian 3D Model Ultra Librarian BPA06B CAD Model

Description

The C&K Components 864462-BPA06B is an electronic component that falls under the category of switches.

  • Type: Dip switch SPST
  • Mounting: Through hole, right angle
  • Actuator: Piano
  • Current Rating: 100mA
  • Voltage Rating: 5VDC
  • Supply and Demand Status: Limited
  • Series: BPA
  • Temperature Range: -20°C to 85°C
  • Package: Tube
  • Other Part Numbers: CKN6144, *BPA06B, 2266-BPA06B
