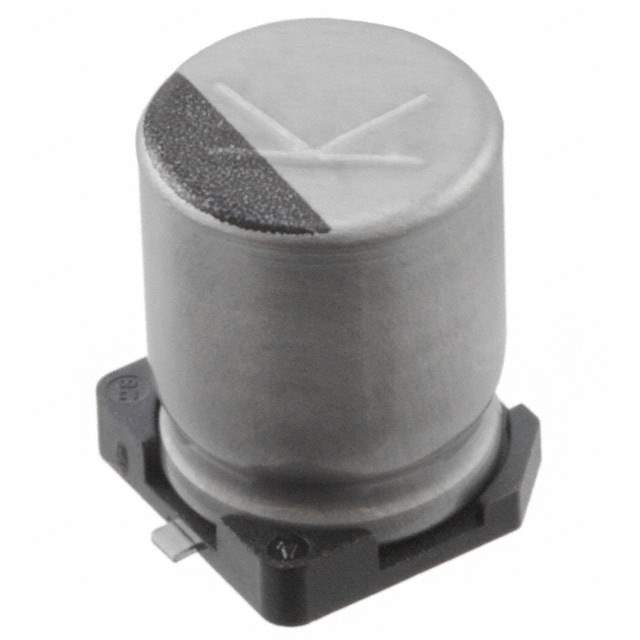

6.3TZV1000M8X10.5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 360 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 1189-1667-6,63TZV1000M8X105,1189-1667-1,1189-1667-2
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307296-6.3TZV1000M8X10.5
Ultra Librarian 3D Model Ultra Librarian 6.3TZV1000M8X10.5 CAD Model

Description

The TZV series aluminum electrolytic capacitor is a surface mount device with a capacitance of 1000µF and a tolerance of ±20%.

  • Rated Voltage: 6.3V
  • Height: 0.413" (10.50mm) when seated
  • Application: Automotive
  • Ripple Current @ Low Frequency: 360mA
  • Ripple Current @ High Frequency: 600mA
  • Impedance: 160 mOhms
  • Lifetime: 2000 hours @ 105°C
  • Package: Radial, can - SMD package
  • Dimension: 0.315" Dia (8.00mm)
  • Operating Temperature Range: -55°C to 105°C
