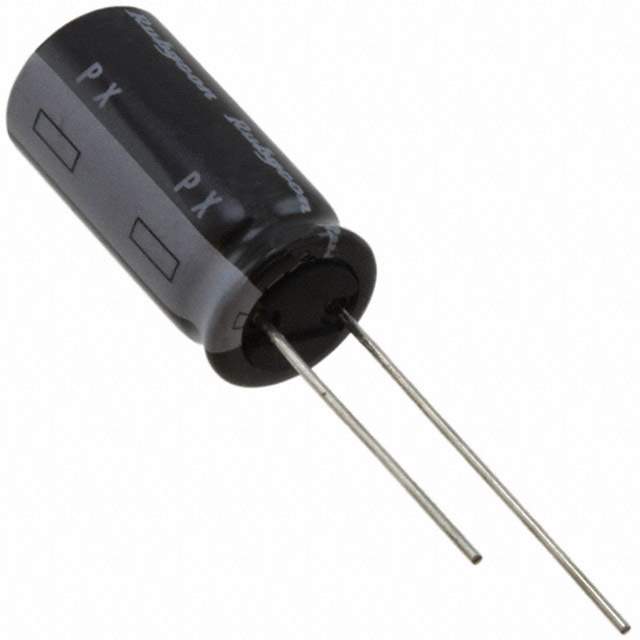

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Tape & Box (TB)
Capacitance 3300 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 985 mA @ 120 Hz
Ripple Current @ High Frequency 1.13275 A @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339833-6.3PX3300MEFCT810X20
Ultra Librarian 3D Model Ultra Librarian 6.3PX3300MEFCT810X20 CAD Model

Description

The Rubycon PX series aluminum electrolytic capacitor is a general-purpose capacitor with a capacitance of 3300 µF and a voltage rating of 6.3 V.

  • Package: Radial, Can
  • Size: 0.394" Dia (10.00mm)
  • Tolerance: ±20%
  • Lifetime: 2000 Hrs @ 105°C
  • Polarization: Polarized
  • Lead Spacing: 0.197" (5.00mm)
  • ESR: Not Specified
  • Ripple Current (Low Frequency): 985 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.13275 A @ 10 kHz
  • Application: General Purpose
  • Temperature Range: -55°C to 105°C
