50YXJ4R7MTA5X11 Rubycon

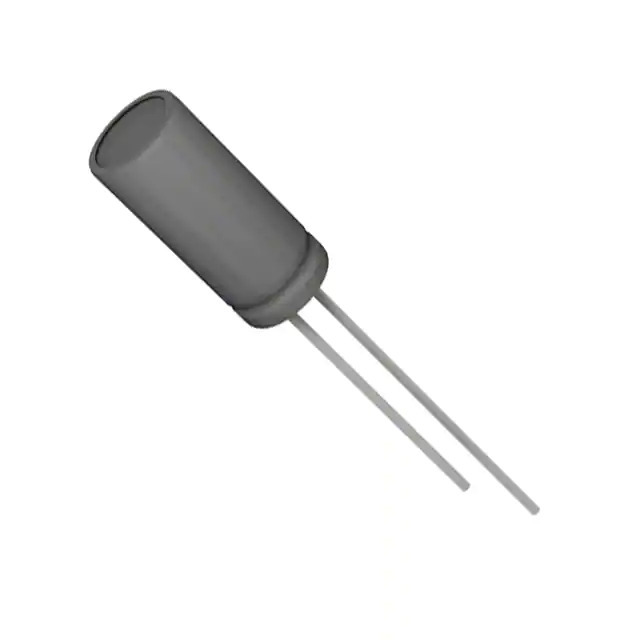

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Tape & Box (TB)
Product Status Active
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 36.96 mA @ 120 Hz
Impedance 1.9 Ohms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357656-50YXJ4R7MTA5X11
Ultra Librarian 3D Model Ultra Librarian 50YXJ4R7MTA5X11 CAD Model

Description

The Rubycon 1357656-50YXJ4R7MTA5X11 is a radial, can-type aluminum electrolytic capacitor.

  • Series: YXJ
  • Application: General Purpose
  • Capacitance: 4.7 µF
  • Voltage Rating: 50 V
  • Operating Temperature: -40°C to 105°C
  • Tolerance: ±20%
  • Lead Spacing: 5.00mm
  • Size: 5.00mm (Diameter)
  • Height Seated: 12.50mm
  • Ripple Current: 36.96 mA @ Low Frequency (120 Hz)
  • Lifetime: 5000 hours @ 105°C
  • REACH Unaffected: Yes
  • ECCN: EAR99
  • Polarization: Polar
  • Impedance: 1.9 Ohms
