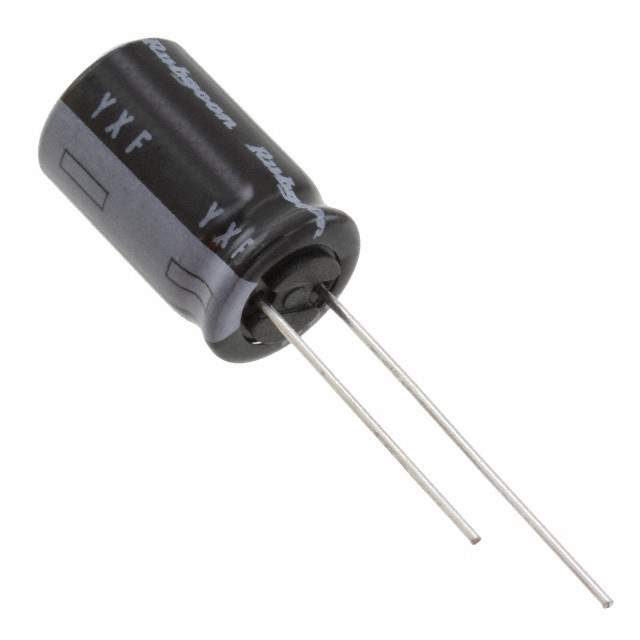

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 539 mA @ 120 Hz
Ripple Current @ High Frequency 770 mA @ 100 kHz
Impedance 120 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-4020,50YXF220MEFC10X16-ND
Standard Package 1,000
Win Source Part Number 1329510-50YXF220MEFC10X16
Ultra Librarian 3D Model Ultra Librarian 50YXF220MEFC10X16 CAD Model

Description

The aluminum electrolytic capacitor from Rubycon is a general-purpose capacitor with a capacitance of 220 µF and a voltage rating of 50 V.

  • Capacitance: 220 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Impedance: 120 mOhms
  • ESR (Equivalent Series Resistance): Not specified
  • Lifetime: 7000 hours @ 105°C
  • Polarized: Yes
  • Ripple Current @ Low Frequency: 539 mA @ 120 Hz
  • Ripple Current @ High Frequency: 770 mA @ 100 kHz
  • Package: Radial, can
  • Mounting Type: Through Hole
  • Diameter: 0.394" (10.00mm)
  • Height: 0.689" (17.50mm)
  • ROHS3: Compliant
  • Application: General-Purpose
