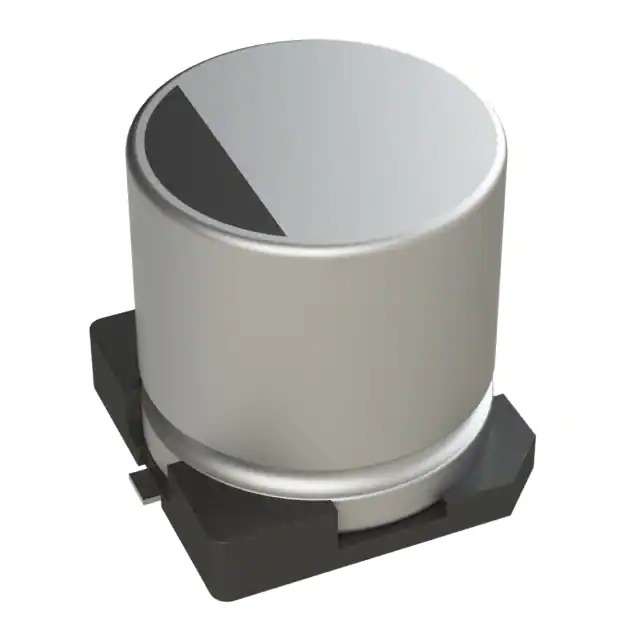

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series THV
Package Tape & Reel
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 1Ohm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 31.5 mA @ 120 Hz
Ripple Current @ High Frequency 70 mA @ 100 kHz
Impedance 1 Ohms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360289-50THV10M6.3X6.1
Ultra Librarian 3D Model Ultra Librarian 50THV10M6.3X6.1 CAD Model

Description

The Rubycon 1360289-50THV10M6.3X6.1 is a surface mount aluminum electrolytic capacitor with a capacitance of 10 µF and a voltage rating of 50 V.

  • Temperature Range: -40°C to 125°C
  • Application: Automotive
  • Size: 0.248" diameter and 0.240" height
  • Packaging: Tape and reel
  • Lifetime: 2000 hours @ 125°C
  • Ripple Current (Low Frequency): 31.5 mA
  • Ripple Current (High Frequency): 70 mA
  • Tolerance: ±20%
  • Impedance: 1 Ohm @ 100 kHz
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (unlimited shelf life)
