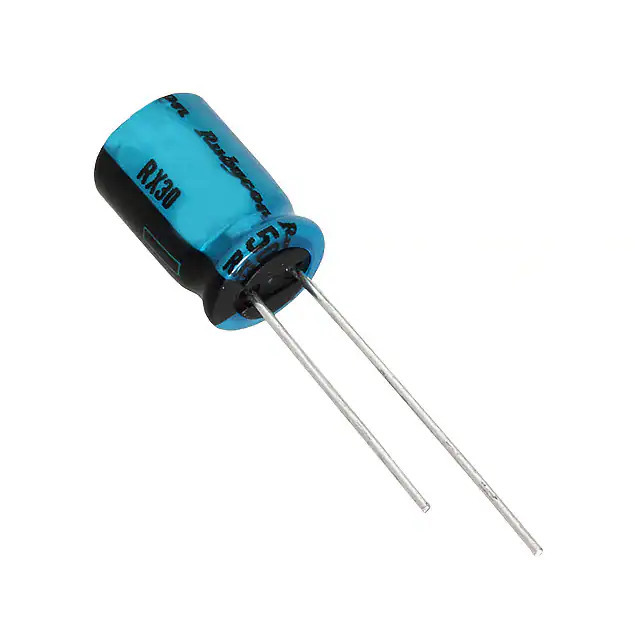

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series RX30
Package Tape & Box (TB)
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 130°C
Temperature Range - Operating -40°C ~ 130°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 210 mA @ 120 Hz
Ripple Current @ High Frequency 300 mA @ 100 kHz
Impedance 280 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357631-50RX3047MT78X11.5
Ultra Librarian 3D Model Ultra Librarian 50RX3047MT78X11.5 CAD Model

Description

The Rubycon RX30 series aluminum electrolytic capacitor is a high-quality component designed for automotive applications.

  • Capacitance: 47 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Size: 0.315" Diameter, 0.512" Height
  • Lifetime: 2000 hours @ 130°C
  • Equivalent Series Resistance (ESR): Low ESR
  • Ripple Current: 210 mA @ Low Frequency, 300 mA @ High Frequency
  • Application: Automotive
  • Product Status: Active
  • Manufacturer: Rubycon
