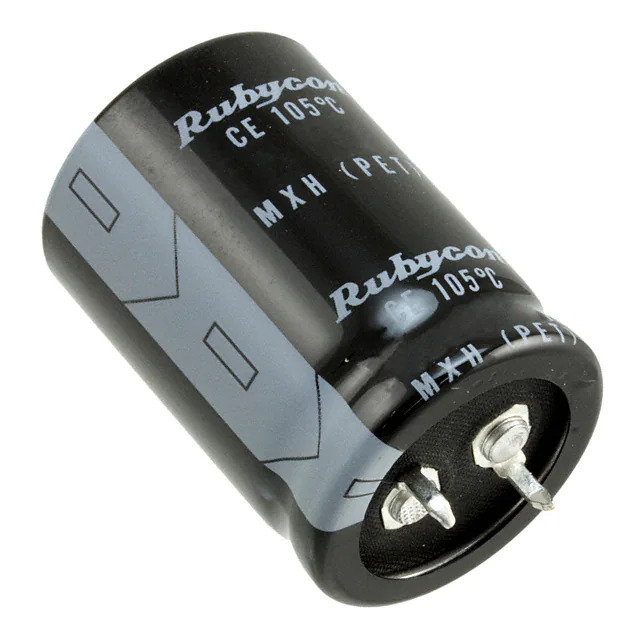

Same model may have multiple batches, images only for reference.

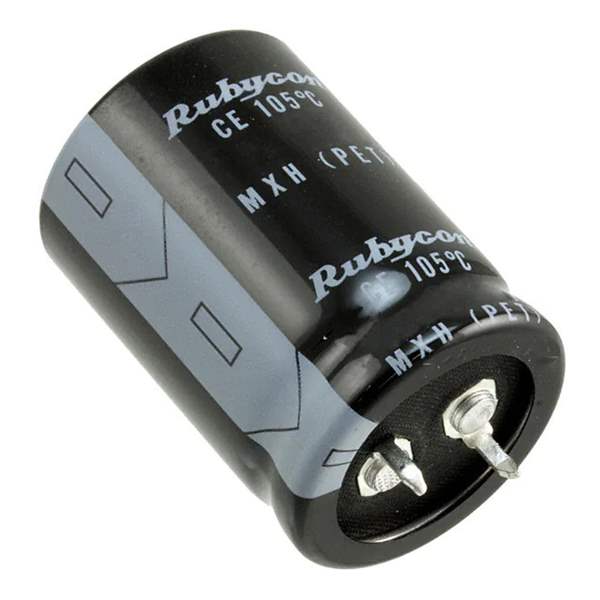

500MXH330MEFCSN30X50 Rubycon
Same model may have multiple batches, images only for reference.

500MXH330MEFCSN30X50

Part No 500MXH330MEFCSN30X50
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 500V SNAP / 330 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXH
Package Bulk
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 500 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.81 A @ 120 Hz
Ripple Current @ High Frequency 2.534 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360651-500MXH330MEFCSN30X50
Ultra Librarian 3D Model Ultra Librarian 500MXH330MEFCSN30X50 CAD Model

Description

The Rubycon MXH series is a bulk aluminum electrolytic capacitor with a capacitance of 330 µF and a voltage rating of 500 V from Rubycon.

  • Capacitance: 330 µF
  • Voltage Rating: 500 V
  • Temperature Range: -25°C to 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.81 A @ 120 Hz
  • Ripple Current (High Frequency): 2.534 A @ 10 kHz
  • Lifetime: 2000 hours @ 105°C
  • Polarization: Polarized
  • Size: 1.181" (30.00mm) Diameter x 2.047" (52.00mm) Height
  • Mounting Type: Through Hole, Snap-In
  • REACH Status: Unaffected
