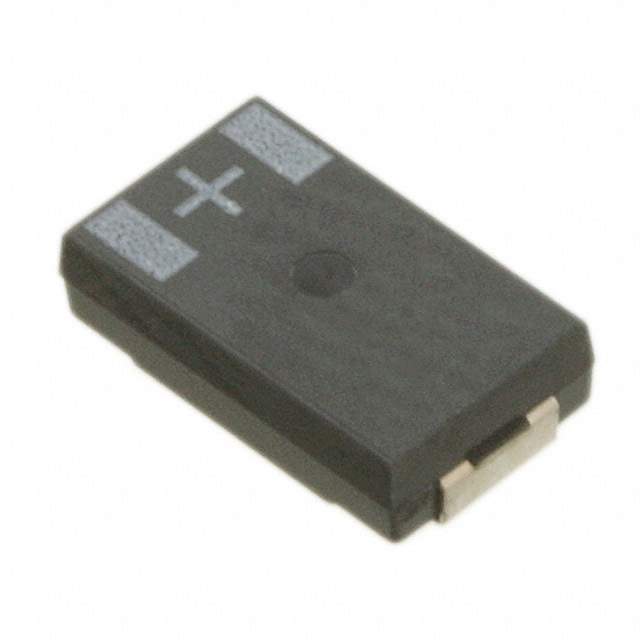

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Rubycon
Series PC-CON, SXE
Package Tape & Reel
Product Status Obsolete
Type Polymer
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 4 V
ESR (Equivalent Series Resistance) 9mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.075" (1.90mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1644-2,1189-1644-1,1189-1644-6
Standard Package 3,500
Win Source Part Number 1217655-4SXE100M
Ultra Librarian 3D Model Ultra Librarian 4SXE100M CAD Model

Description

The Rubycon 1217655-4SXE100M is an aluminum-polymer capacitor with a capacitance of 100 µF and a voltage rating of 4 V.

  • Tolerance: It has a tolerance of ±20%
  • Surface Mount Land Size: and a surface mount land size of 0.287" L x 0.169" W (7.30mm x 4.30mm).
  • ESR: This capacitor has an ESR of 9mOhm
  • Ripple Current: and a ripple current of 3 A @ 100 kHz.
  • Seated Height: It has a height of 0.075" (1.90mm) when seated
  • Dimension: and a dimension of 0.287" L x 0.169" W (7.30mm x 4.30mm).
  • Lifetime: The lifetime of this capacitor is 2000 Hrs @ 105°C
  • Operating Temperature: and it can operate in a temperature range of -55°C ~ 105°C.
  • Application: It is designed for general-purpose applications
  • Package: and comes in a 2917 (7343 Metric) package.
  • ECCN: The ECCN of this capacitor is EAR99
  • ROHS Compliance: and it is ROHS3 compliant.
