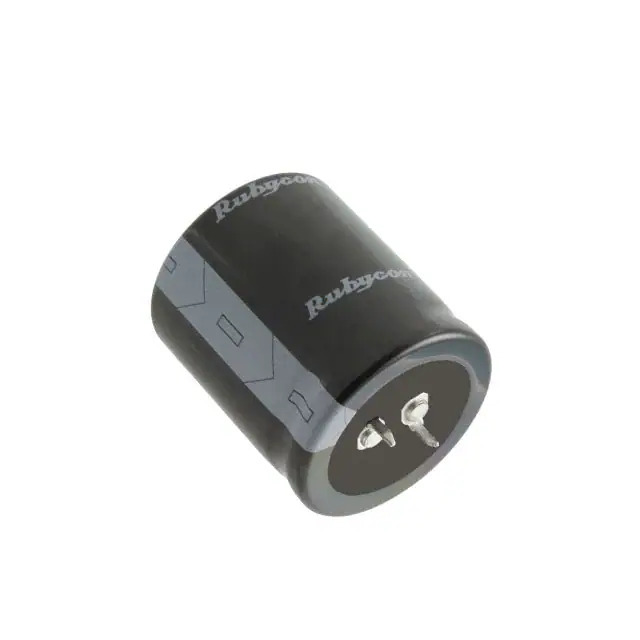

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXG
Package Bulk
Product Status Active
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 690 mA @ 120 Hz
Ripple Current @ High Frequency 966 mA @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.787" Dia (20.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360771-450MXG68MEFCSN20X25
Ultra Librarian 3D Model Ultra Librarian 450MXG68MEFCSN20X25 CAD Model

Description

The Rubycon MXG series capacitors are aluminum electrolytic capacitors designed for general-purpose applications.

  • Capacitance: 68 μF
  • Voltage Rating: 450 V
  • Operating Temperature: -25°C to 105°C
  • Ripple Current (Low Frequency): 690 mA @ 120 Hz
  • Ripple Current (High Frequency): 966 mA @ 10 kHz
  • Package: Radial, Can - Snap-In
  • Mounting Type: Through-Hole
  • Size: 0.787" (20.00mm) in diameter
  • Height: 1.063" (27.00mm)
  • Lifetime: 3000 hours @ 105°C
  • Manufacturer: Rubycon
