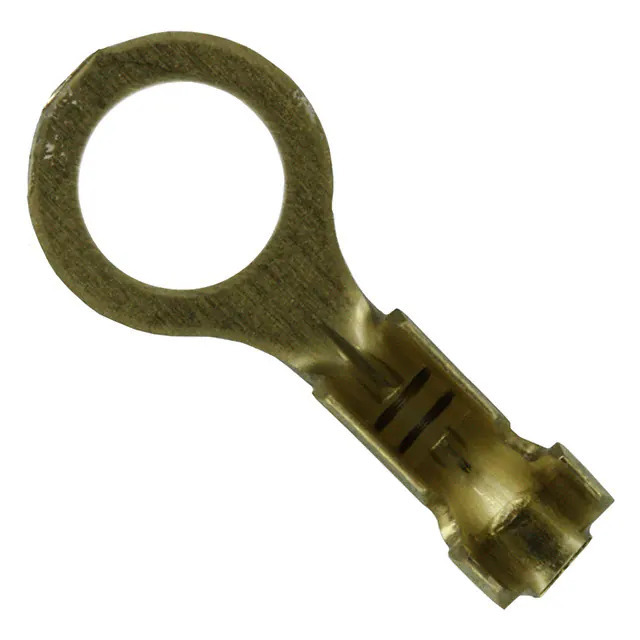

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.020" (0.51mm)
Width - Outer Edges 0.296" (7.52mm)
Length - Overall 0.662" (16.81mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Features Serrated Termination
Color -
Contact Material Brass
Contact Finish -
Insulation Diameter 0.080" ~ 0.110" (2.03mm ~ 2.79mm)
Material - Insulation -
Base Product Number 42036
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365083-42036-2
Ultra Librarian 3D Model Ultra Librarian 42036-2 CAD Model

Description

The 1365083-42036-2 is a ring connector used in various electrical and electronic applications.

  • Manufacturer: TE Connectivity AMP Connectors
  • Wire Gauge: 18-22 AWG
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Serrated
  • Contact Material: Brass
  • Insulation Diameter: 0.080" to 0.110" (2.03mm to 2.79mm)
  • Length: 0.662" (16.81mm)
  • Width: 0.296" (7.52mm)
